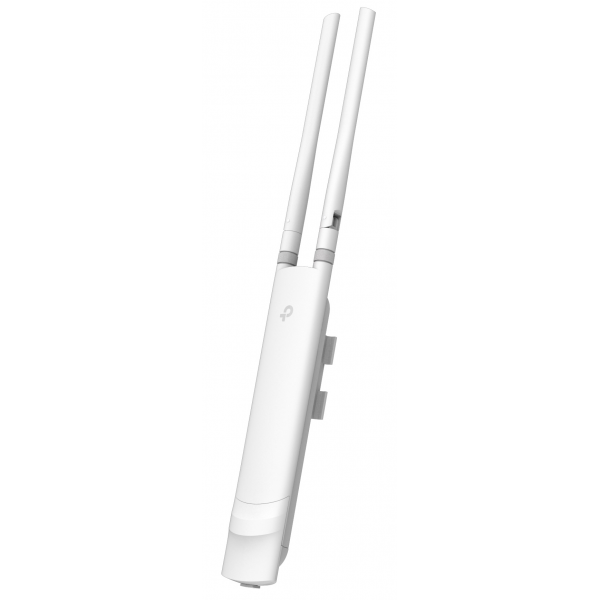

TP-Link EAP225 AC1200 Wireless MU-MIMO Gigabit Indoor & Outdoor Access Point

Model: EAP225-OUTDOOR

SKU Code: 0031234

TP-Link EAP225 AC1200 Wireless MU-MIMO Gigabit Indoor & Outdoor Access Point

Name: TP-Link EAP225 AC1200 Wireless MU-MIMO Gigabit Indoor & Outdoor Access Point
Brand: TP-Link
SKU: 0031234
Price: 99.00 EUR
Availability: InStock

AC1200 Wave 2 with Mesh Technology for Unlimited Business Wi-Fi.

In stock

In Stock - Zejtun

Quantity

€99.00

Offers available in Stores only

GO Freedom Plus Plan €89.10

Description

Omada Mesh Technology

Intelligent Self-organization - Omada EAPs with Mesh Technology, automatically choose the best route to extend your Wi-Fi further and more flexibly.
Self-healing - If one link has an issue, the system will automatically reroute data via the other Omada devices to make sure you stay online.

Superior Wi-Fi Performance and Long-Range Coverage

Dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior Wi-Fi peroformance and long-range coverage over 2.4GHz and 5GHz wireless bands.

Fast Roaming for Seamless Mobility

802.11k and 802.11v fast roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Specially Designed Weatherproof Enclosure for Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications

Hardware Features

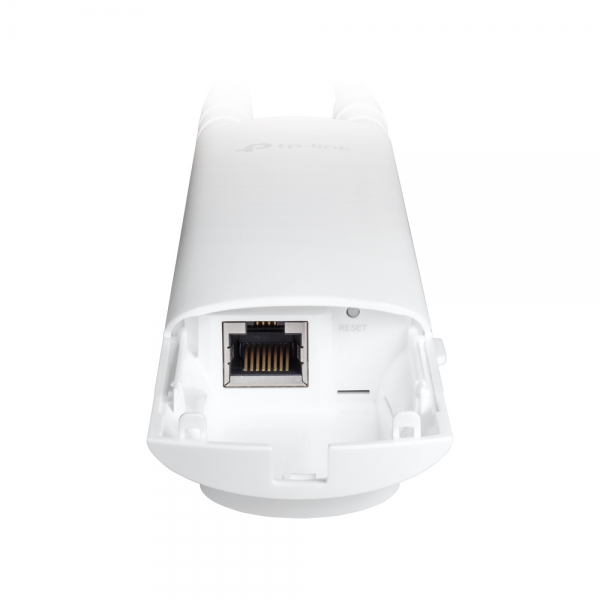

Interface: 1 × Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)

Button: Reset

Power Supply

802.3af/at PoE (Alternative A)
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption: 10.5 W

Dimensions ( W x D x H )

215.7 × 45 × 37.7 mm (without antenna & mounting kit)
403.8 × 90.7 × 55.2 mm (with antenna & mounting kit)

Antenna

2.4 GHz: 2× 3 dBi
5 GHz: 2× 4 dBi

Weatherproof Enclosure: IP65

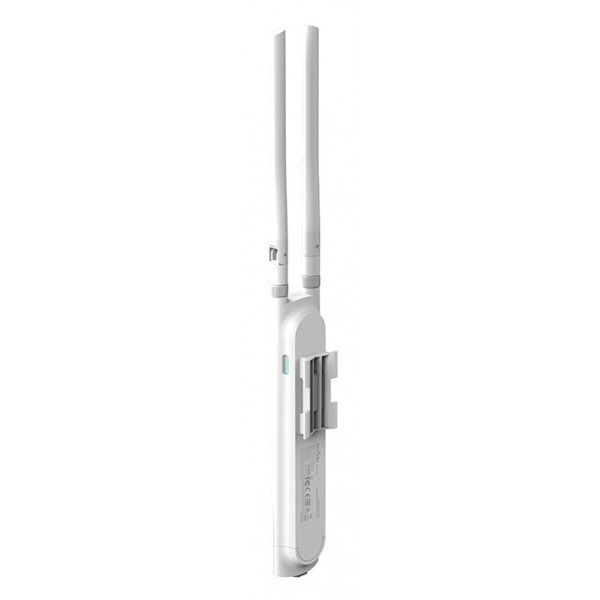

Mounting: Pole/Wall Mounting (Kits included)

Wireless Features

Wireless Client Capacity: 220+

Wireless Standards: IEEE 802.11a/b/g/n/ac

Frequency: 2.4GHz, 5GHz

Signal Rate

802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions

Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Transmission Power

CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

Management

Omada App: Yes

Centralized Management

Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Yes

SSH: Yes

Web-based Management: Yes

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

Others

Certification CE, FCC, RoHS

Package Contents

Access Point EAP225-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
Waterproof Ruber Insert
Waterproof Antenna

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

Operating Temperature: -30–70 ℃ (-22–158 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
