Model: TL-SG1008MP

SKU Code: 0036203

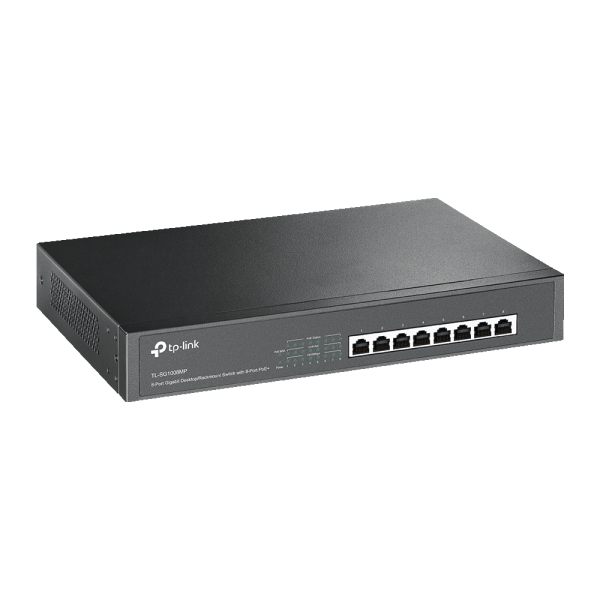

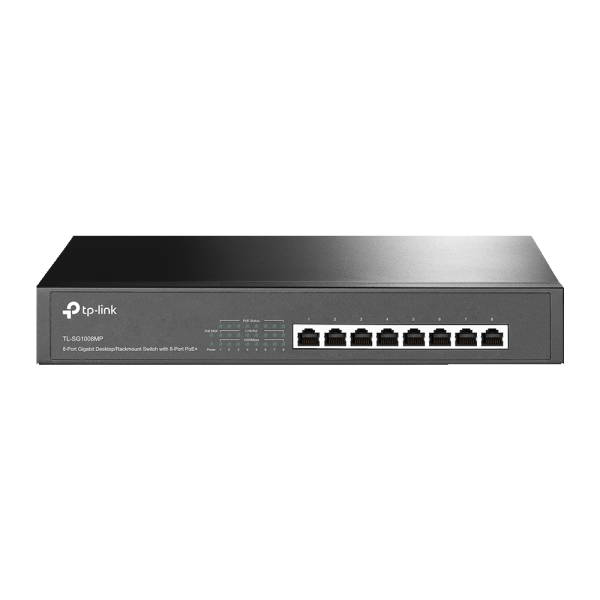

TP-Link SG1008MP 8-port Gigabit Switch with 8xPoE

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+




In stock

In Stock - Birkirkara

Quantity



€120.00

Offers available in Stores only

€108.00

Description

Overview
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 153W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save the power consumption, making it an eco-friendly solution for your business network.

Overload Arrangement
TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 153W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 153W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 153W limit., This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network.

Features
  • 8 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Innovative energy-efficient technology reduces power consumption
  • Supports PoE+ standard with total power budget of 153W* and up to 30W per port
  • Plug and play design, no configuration required

Specifications

Technical Specifications
Hardware Features
Interface:
  • 8 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: 1
Power Supply: 100-240VAC, 50/60Hz
Packet Forwarding Rate: 11.904 Mpps
PoE+ Ports(RJ45):
  • Standard: 802.3af/at compliant
  • PoE+ Ports: 8 Ports
  • Power Supply: 153W
Mac Address Table: 4K
Buffer Size: 1.5Mbits
Jumbo Frame: 16 KB
Switching Capacity: 16Gbps
Dimensions ( W x D x H ): 11.6*7.1*1.7 in. (294*180*44 mm)
Mounting: Desktop/Rack Mountable
Max Power Consumption:
  • 8.57W(220V/50Hz. no PD connected)
  • 173.65W(110V/60Hz. with 153W PD connected)
Max Heat Dissipation:
  • 29.22BTU/h(no PD connected)
  • 592.15BTU/h(with 153W PD connected)
Software Features
Advanced Features:
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Priority Function
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
Transfer Method: Store-And-Forward

Warranty and Returns Policy
