Model: TL-POE160S

SKU Code: 0029106

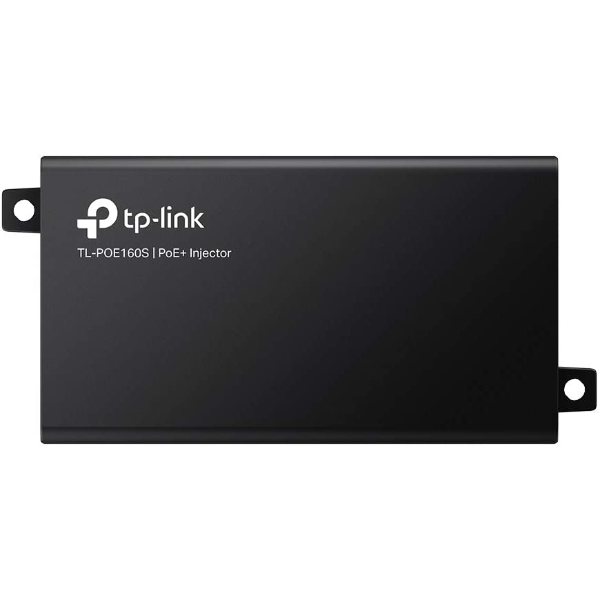

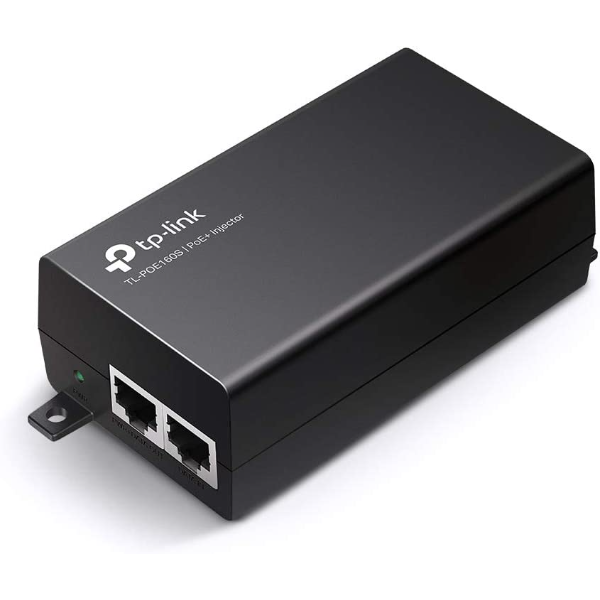

TP-Link PoE+ Injector

Expand your network to where there are no power line or outlet.

€22.00

Currently Not Available

Current Price: €22.00

GO Freedom Plus Plan Price: €19.80

Click here to learn more

Description

Overview

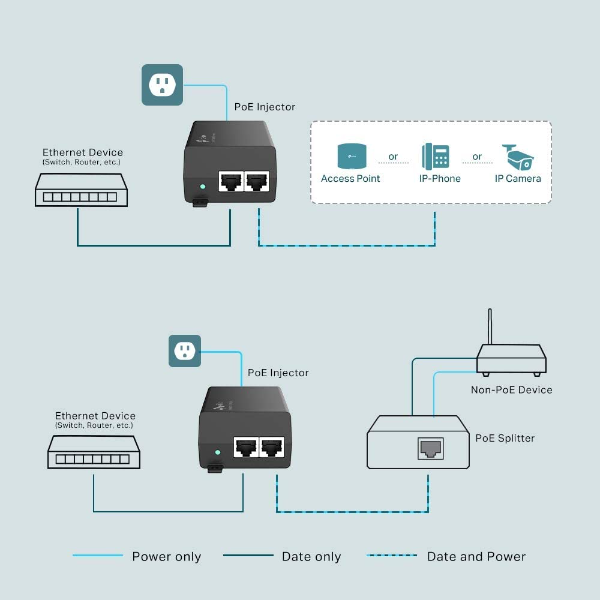

The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Features
  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at standards, supplies up to 30 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation, requires no configuration
  • Integrated power supply

Specifications

Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

General
Certification: FCC, CE, RoHS
Environment: Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing

Package Contents
  • Package Contents
  • PoE+ Injector TL-POE160S
  • Installation Guide
  • Power Cord
  • RJ45 Cable
  • Wall Mounting Kits

Hardware Features
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
  • EIA/TIA-568 100Ω STP (maximum 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
  • EIA/TIA-568 100Ω STP (maximum 100 m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports
  • 1 10/100/1000Mbps RJ45 data-in port
  • 1 10/100/1000Mbps RJ45 power+data-out port
  • 1 AC socket
Power Consumption: Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W)
Basic Function
  • Auto-Sensing Algorithm enables providing power with 802.3af/at PD
  • Auto-determine the necessary power requirements
  • Wall-mounting and desktop installation supported
  • Plug-and-Play
LED Indicator
  • ON: Supplying power normally
  • OFF: No power supply
Dimensions ( W x D x H ): 125 x 59.4 x 36.8 mm
