Klikk Computers Store Malta - TP-Link AX1800 Dual Band Gigabit Wi-Fi 6 Wireless Router Archer AX23

Model: ARCHER AX23

SKU Code: 0032306

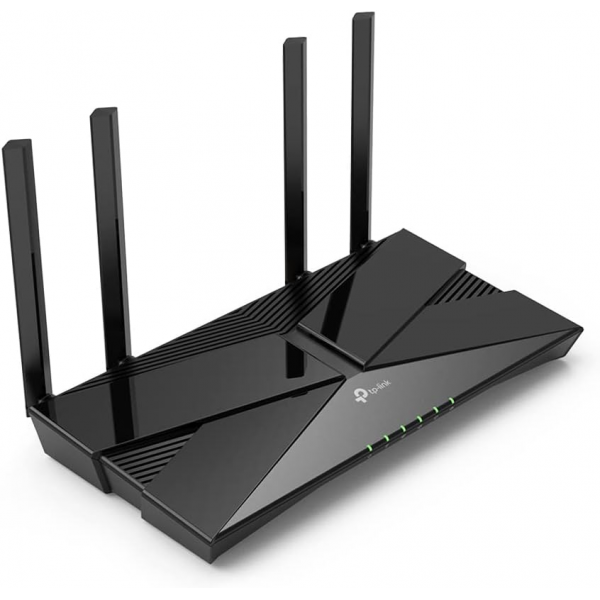

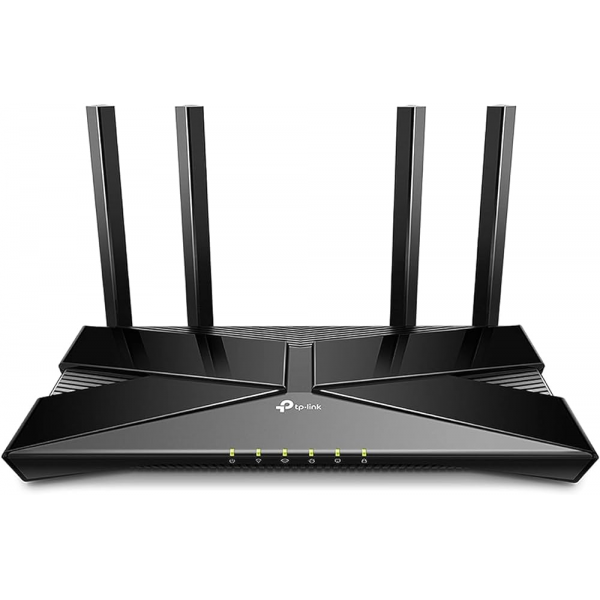

TP-Link AX1800 Dual Band Gigabit Wi-Fi 6 Wireless Router Archer AX23

Explore the New Era of WiFi.

Quantity

€79.90

In stock

In Stock - Birkirkara & Zejtun

Description

WiFi 6 Upgrades Everything

The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Super-Fast WiFi 6

Transfer HD movies in 10 seconds. WiFi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.

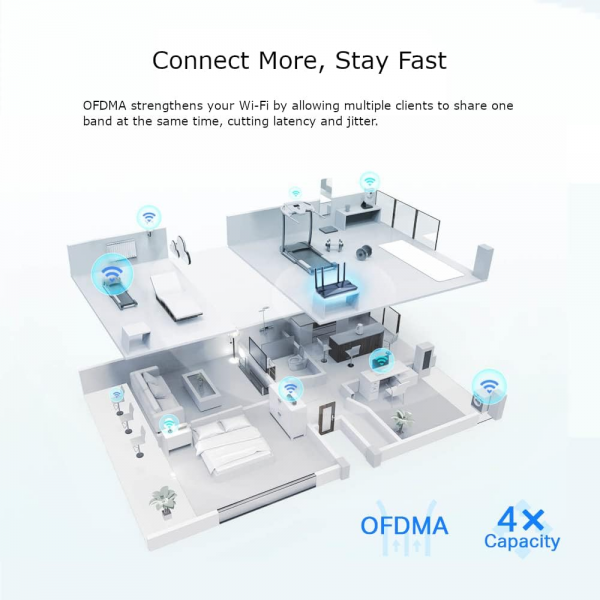

Connect More, Stay Fast

Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.

WiFi Coverage Throughout Your Home

4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.

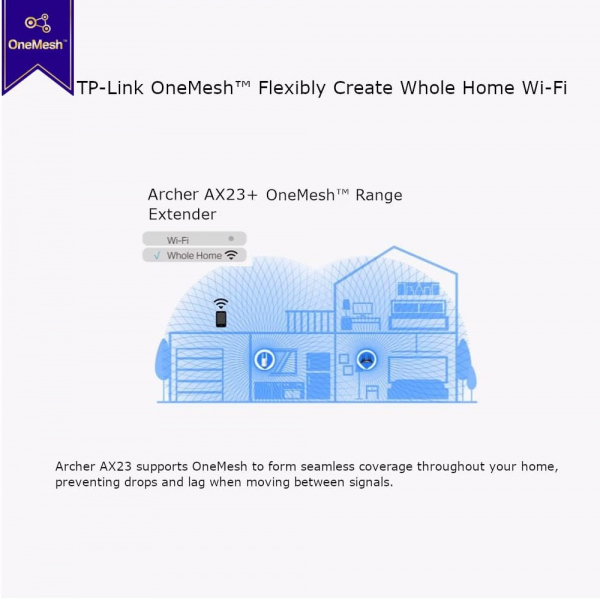

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another EasyMesh-compatible devices to further form your whole home mesh WiFi. No more searching for a stable connection.

WiFi Dead Zone Killer - Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming - Uninterrupted streaming when moving around your home
One WiFi Name - No more switching WiFi network names

WPA3—The Next Level of Cybersecurity

The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.

Universal ISP Support

Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.

Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX23 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children

Block inappropriate content for your children, and customize a time range for better online habits.

Easy Firmware Upgrade

Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.

Specifications

Wireless

Standards: Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds: AX1800

5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11n)

4× Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range

Dual-Band: Allocate devices to different bands for optimal performance

OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness: Improves network efficiency by limiting excessive occupation

4 Streams: Connect your devices to more bandwidth

Working Modes

Router Mode
Access Point Mode

Hardware Features

Ethernet Ports

1× Gigabit WAN Port
4× Gigabit LAN Ports

Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button

Power: 12 V ⎓ 1 A

Security

WiFi Encryption

WPA
WPA2
WPA3
WPA/WPA2-Enterprise encryptions

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

Guest Network

1 × 5 GHz Guest Network
1 × 2.4 GHz Guest Network

VPN Server

OpenVPN
PPTP

Test Data

WiFi Transmission Power

CE:

<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)

FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

5 GHz:
- 11a 6Mbps: -96dbm
- 11a 54Mbps:-75dbm
- 11ac VHT20_MCS0: -95dbm
- 11ac VHT20_MCS8: -71dbm
- 11ac VHT40_MCS0: -92dbm
- 11ac VHT40_MCS9: -66dbm
- 11ac VHT80_MCS0: -89dbm
- 11ac VHT80_MCS9:-62dbm
- 11ax HE20_MCS0:-95dbm
- 11ax HE20_MCS11: -64dbm
- 11ax HE40_MCS0: -92dbm
- 11ax HE40_MCS11: -60dbm
- 11ax HE80_MCS0: -89dbm
- 11ax HE80_MCS11:-59dbm
2.4 GHz:
- 11g 6Mbps:-96dbm
- 11g 54Mbps:-75dbm
- 11n HT20_MCS0:-95dbm
- 11n HT20_MCS7:-75dbm
- 11n HT40_MCS0:-92dbm
- 11n HT40_MCS7: -72dbm
- 11ac VHT20_MCS0:-95dbm
- 11ac VHT20_MCS8:-72dbm
- 11ac VHT40_MCS0:-92dbm
- 11ac VHT40_MCS9: -67dbm
- 11ax HE20_MCS0:-95dbm
- 11ax HE20_MCS11: -65dbm
- 11ax HE40_MCS0: -92dbm
- 11ax HE40_MCS11: -62dbm

Software

Protocols

IPv4
IPv6

Easy Mesh: Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

Parental Controls

URL Filtering
Time Controls

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service: QoS by Device

Cloud Service

OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP

IPTV

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP

Address Reservation
DHCP Client List
Server

DDNS

TP-Link
NO-IP
DynDNS

Management

Tether App
Webpage

Package Contents

Wi-Fi Router Archer AX23
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

Other

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)

Certifications: FCC, CE, RoHS

Dimensions (W×D×H): 260.2 × 135.0 × 38.6 mm
