Klikk Computers Store Malta - TP-Link JetStream 10 Port Gigabit Smart Switch with 8 Port PoE+

Model: TL-SG2210P

SKU Code: 0032181

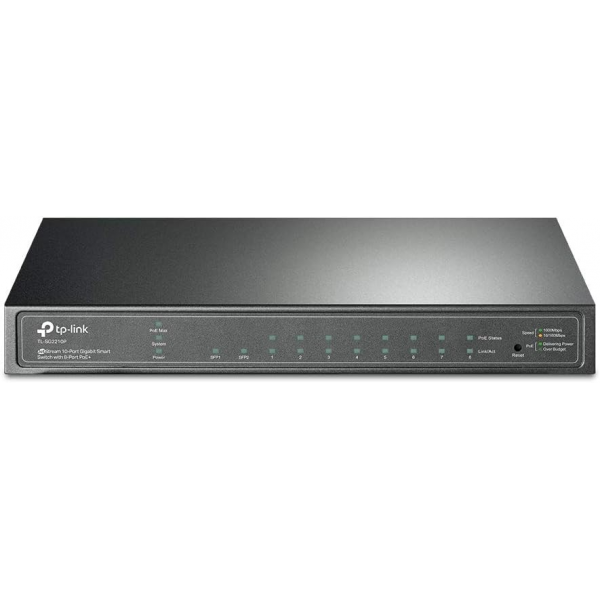

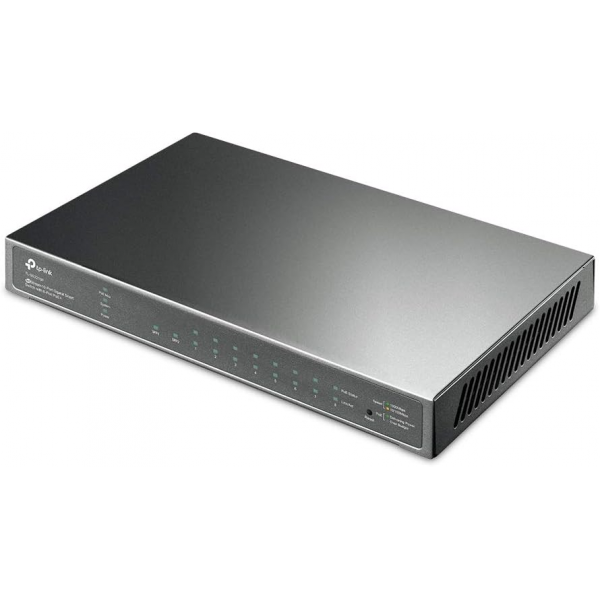

TP-Link JetStream 10 Port Gigabit Smart Switch with 8 Port PoE+

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance.

Quantity

€135.00

In stock

Stock in Birkirkara & Zejtun

Description

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

61 W PoE Budget

8× 802.3af/at-compliant PoE+ ports with a total power supply of 61 W.

Full Gigabit Ports

8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN

Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management

Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies

IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimized Voice and Video Applications

L2/L3/L4 QoS and IGMP snooping.

Versatile Management

WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

Specifications

Hardware Features

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

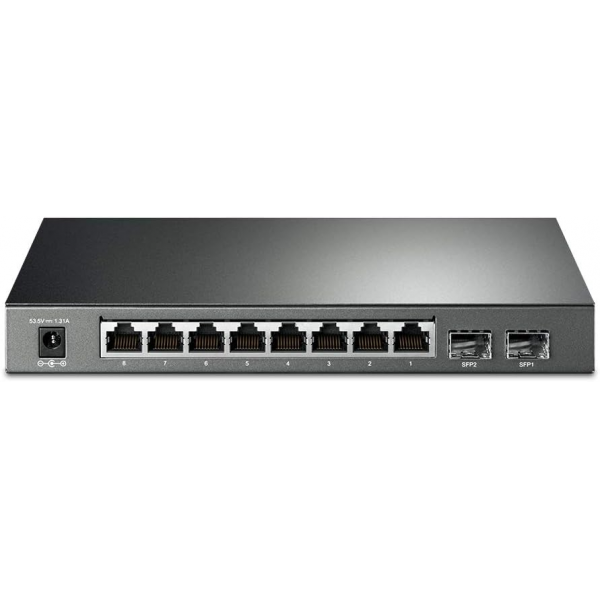

8× 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
2× 1000Mbps SFP Slots

Network Media:

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Fan Quantity: Fanless

Power Supply

100~240VAC, 50/60Hz
External Power Adapter(Output: 53.5VDC/1.31A)

PoE Ports (RJ45)

Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 61 W

Max Power Consumption

V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected)
V4: 74.4 W (220 V/50 Hz) (with 61 W PD connected)
V5: 77.8 W (110 V/60 Hz) (with 61 W PD connected)

Max Heat Dissipation

V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected)
V4: 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected)
V5: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)

Dimensions (W x D x H): 209 x 126 x 26 mm

Performance

Switching Capacity: 20Gbps

Packet Forwarding Rate: 14.88Mpps

MAC Address Table: 8K

Packet Buffer Memory: 4.1 Mbit

Jumbo Frame: 9 KB

Software Features

Quality of Service

802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
- Port/Flow based Rating Limit
Smoother Performance
Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features

16 IP Interfaces
- Support IPv4/IPv6 Interface
Static Routing
- 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
Loopback Detection
Flow Control
- 802.3x Flow Control
Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

Advanced Features

Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

VLAN

VLAN Group: Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN

Access Control List

Support up to 230 entries
Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
Time-based ACL
MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation
- Permit/Deny
Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
ACL Rules Binding
- Port Binding
- VLAN Binding
Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark

Security

AAA
802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
IP Source Guard
- 253 Entries
- Source IP+Source MAC
IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI)management with SSHv1/SSHv2
IP/Port/MAC based access control

IPv6

IPv6 Static Routing and ACL
IPv6 Dual IPv4/IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP

MIBs

MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)

Management

Omada App Yes, through

Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
OC300
OC200
Omada Software Controller

Centralized Management

Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
Omada Hardware Controller OC300
Omada Hardware Controller OC200
Omada Software Controller

Cloud Access

Yes, through

Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
OC300
OC200
Omada Software Controller

Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)

Management Features

Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

Others

Certification: CE, FCC, RoHS

Package Contents

TL-SG2210P
Power Adapter
Installation Guide
Rubber Feet

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0℃~40℃ (32℉~104℉);

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
