Model: TL-ER605

SKU Code: 0036208

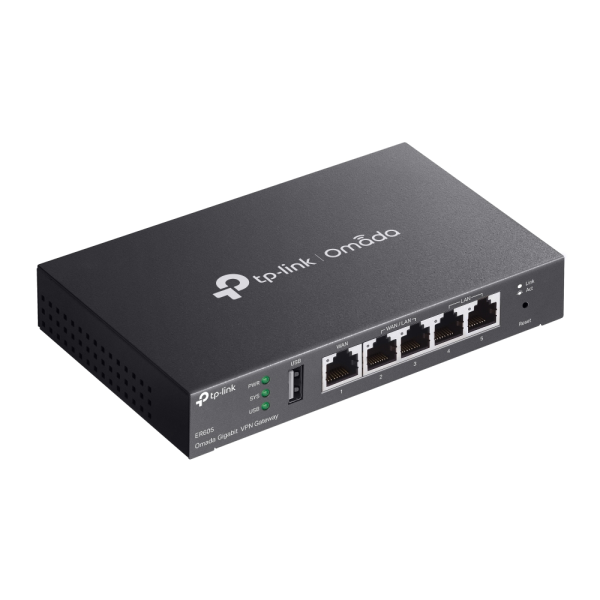

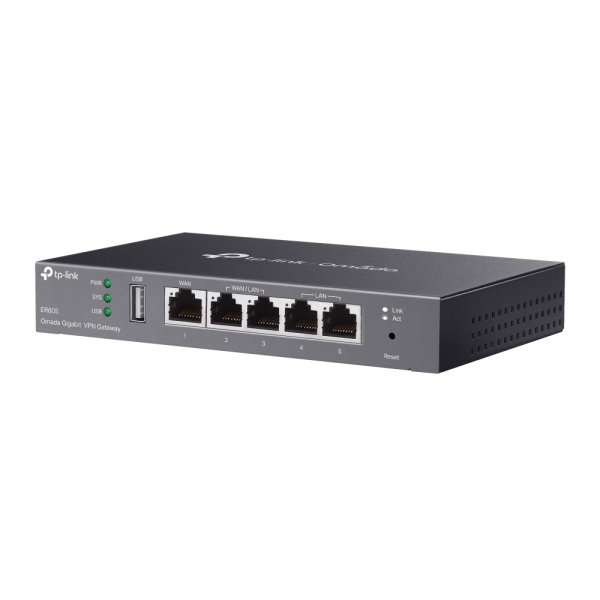

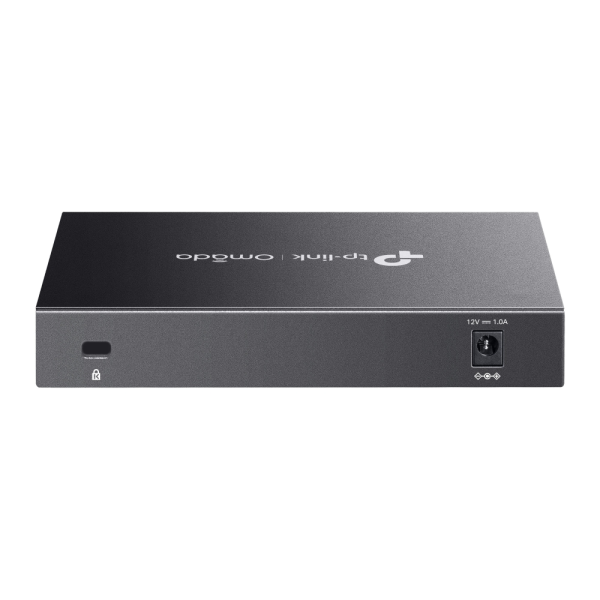

TP-Link Omada ER605 Gigabit VPN Router

Professional, Secure,and Reliable Gigabit VPN Gateway

Quantity



€64.90

In stock

Limited Stock Available

Description

Integrated into Omada SDN
Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management
Cloud access and Omada app for convenience and easy management.

Five Gigabit Ports
High-speed wired connectivity.

Up to 3 WAN Ethernet Ports
1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.

One USB WAN Port for Mobile Broadband
Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡

Highly Secure VPN
Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.

Abundant Security Features
Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.

Specifications

Security
Access Control: Source/Destination IP Based Access Control
Filtering:
  • WEB Group Filtering
  • URL Filtering
  • Web Security
ARP Inspection:
  • Sending GARP Packets
  • ARP Scanning
  • IP-MAC Binding
Attack Defense:
  • TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN

Hardware Features
Interface:
  • 1 Gigabit WAN port
  • 2 Gigabit LAN/WAN ports
  • 2 Gigabit LAN ports
  • 1 USB2.0(supports USB LTE dongle‡)
Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
  • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity: Fanless
Button: Reset Button
Power Supply: External 12V/1A DC Adapter
Flash: 128 MB NAND
DRAM: 256 MB DDR
LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Protection: 4 kV surge protection
Enclosure: Steel

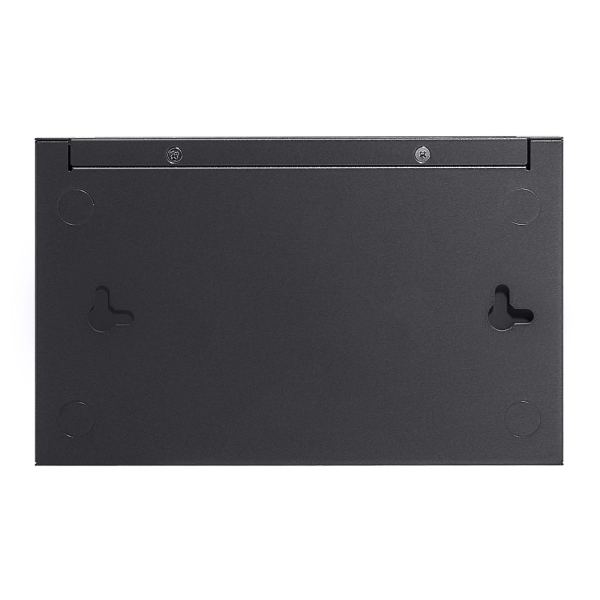

Mounting: Desktop/Wall-mount
Max. Power Consumption: 7.94 W

Performance Features
DPI Throughput:
  • TCP: 905 Mbps
  • UDP: 788 Mbps
WireGuard VPN Throughput: 123.4 Mbps
Concurrent Session: 150,000
New Sessions /Second: 2,600
NAT (Static IP)
  • Upload: 945.77 Mbps
  • Download: 938.79 Mbps
  • Bi-Directional: 1808.29 Mbps
NAT(DHCP):
  • Upload: 945.54 Mbps
  • Download: 945.66 Mbps
  • Bi-Directional: 1802.77 Mbps
NAT(PPPoE):
  • Upload: 939.71Mbps
  • Download: 939.43 Mbps
  • Bi-Directional: 1788.54 Mbps
NAT (L2TP):
  • Upload: 815.55 Mbps
  • Download: 835.59 Mbps
  • Bi-Directional: 903.13 Mbps
NAT (PPTP):
  • Upload: 813.23 Mbps
  • Download: 850.91 Mbps
  • Bi-Directional: 894.41 Mbps
IPsec VPN Throughput:
  • ESP-SHA1-AES256: 259.78 Mbps
  • ESP-SHA256-AES256: 260.81 Mbps
  • ESP-SHA384-AES256: 37.65 Mbps
  • ESP-SHA512-AES256: 38.32 Mbps
OpenVPN: 21.70 Mbps
L2TP VPN Throughput:
  • Unencrypted: 640.99 Mbps
  • Encrypted: 77.31 Mbps
PPTP VPN Throughput:
  • Unencrypted: 759.55 Mbps
  • Encrypted: 75.80 Mbps
66 Byte Packet Forwarding Rate:
  • Upload/Download: 954.50 Mbps
  • Bi-Directional: 1130.00 Mbps
1,518 Byte Packet forwarding rate:
  • Upload/Download: 997.50 Mbps
  • Bi-Directional: 1965.00 Mbps

BASIC FUNCTIONS
WAN Connection Type:
  • Static
  • Dynamic IP
  • PPPoE(supports MRU Configuration)
  • PPTP
  • L2TP
MAC Clone: Modify WAN/LAN MAC Address
DHCP:
  • DHCP Server
  • DHCPv6 PD Server (only in Standalone Mode)
  • DHCP Options Customization
  • DHCP Address Reservation
  • Multi-IP Interfaces
  • Multi-Net DHCP
IPv6: StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN: 802.1Q VLAN
IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Management Features
Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
  • Omada Cloud-Based Controller
  • Omada Hardware Controller (OC300)
  • Omada Hardware Controller (OC200)
  • Omada Software Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance:
  • Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP v1/v2c/v3
  • Diagnostics (Ping & Traceroute)§
  • NTP Synchronize§
  • Port Mirroring
  • CLI (only in Standalone Mode)
  • Syslog Support
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features:
  • Automatic Device Discovery
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot ScheduleCaptive Portal Configuration

Warranty and Returns Policy
