Model: UACC-Retrofit-PoE-2Wire

SKU Code: 0040561

Ubiquiti PoE OVer 2-wire Retrofit Extender

In stock

In Stock - Currently online only

Quantity



€145.00

Offers available in Stores only

€130.50

Description

Overview

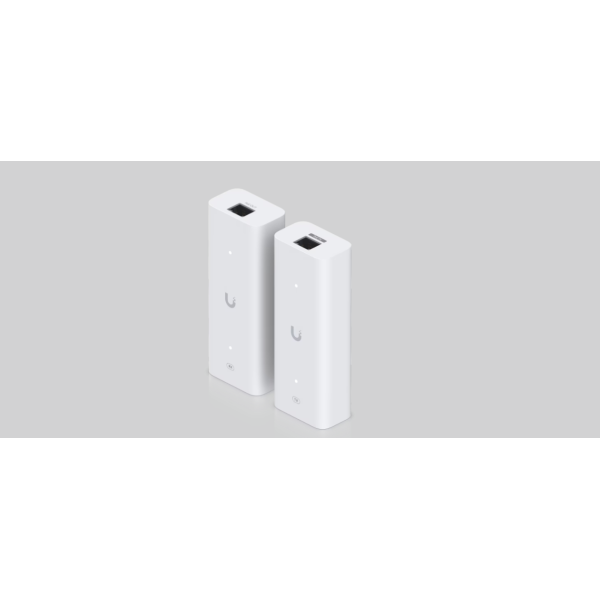

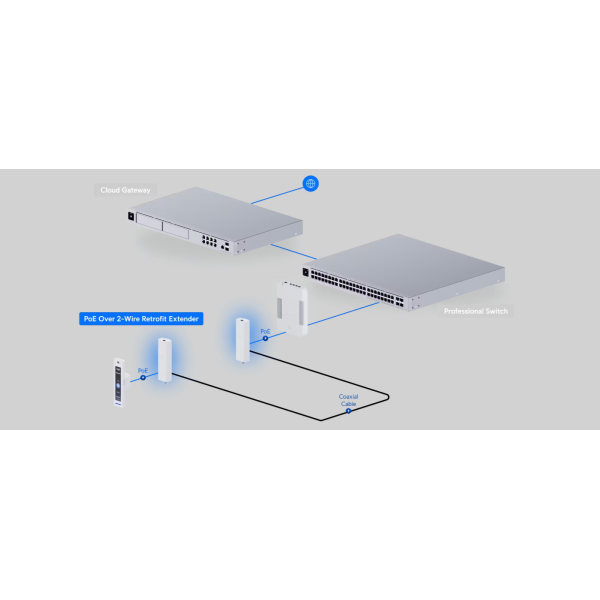

A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.

Specifications

Technical Specifications
Mechanical
Dimensions PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
Weight PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Adapter: 140 g (4.9 oz)
Enclosure material: Polycarbonate
Mounting material: Polycarbonate

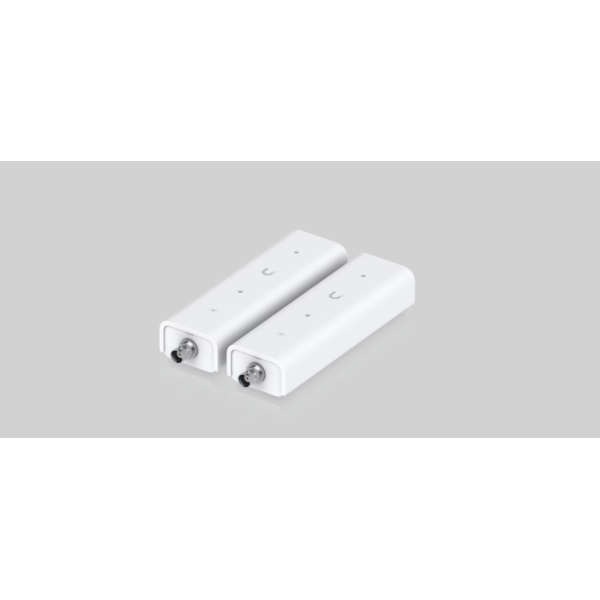

Coaxial connector: BNC female

Hardware
Networking interface
  • (1) 10/100 MbE
  • (1) Homeplug AV
Power method: PoE++
PoE input: (1) PoE++, 50V DC, 1.2A
PoE output: (1) PoE+, 48V DC, 0.6A
Max. power consumption: 3W (Without PoE output)
ESD/EMP protection Air: ±8kV, contact: ±4kV

LED White
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 90% noncondensing
Certifications: CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1

Warranty and Returns Policy
