Dual Channel Lighting

Control four individually addressable RGB LED strips and up to six HD RGB or SP RGB fans (sold separately, fan RGB LED hub required) simultaneously.

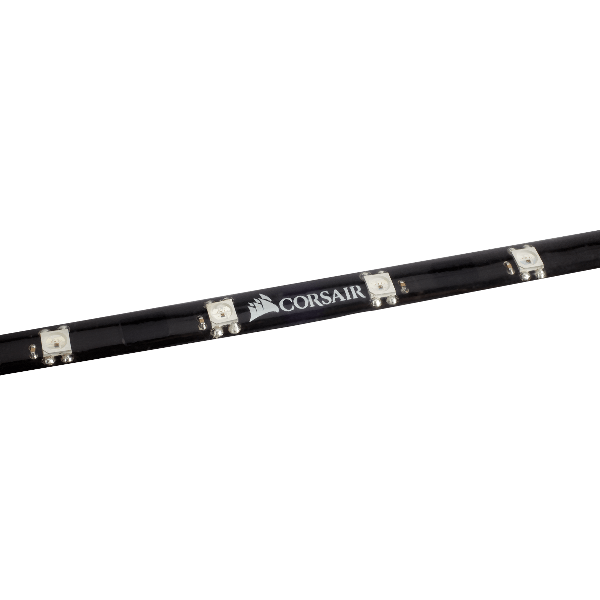

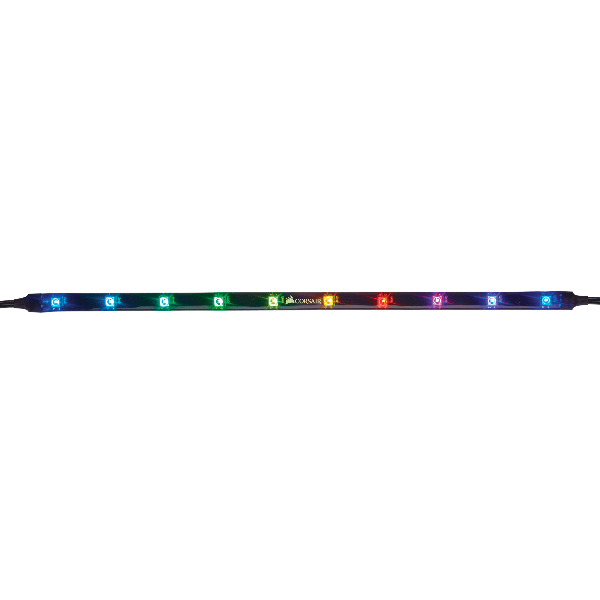

Individually Addressable RGB LED Strips

Each RGB LED strip is independently controlled - display different lighting effects and animations on each strip separately.

Multiple Mounting Options

The RGB LED strips have both mounting tape backings and magnets built into the strips to mount, making installation simple

USB 2.0 Interface

No special interface or additional hardware is required to use the Lighting Node PRO to its full potential; plug it into an available USB 2.0 header on your motherboard.

TOTAL CONTROL

Combining the CORSAIR Lighting Node PRO and LINK software give you full control over your case lighting right from your desktop.

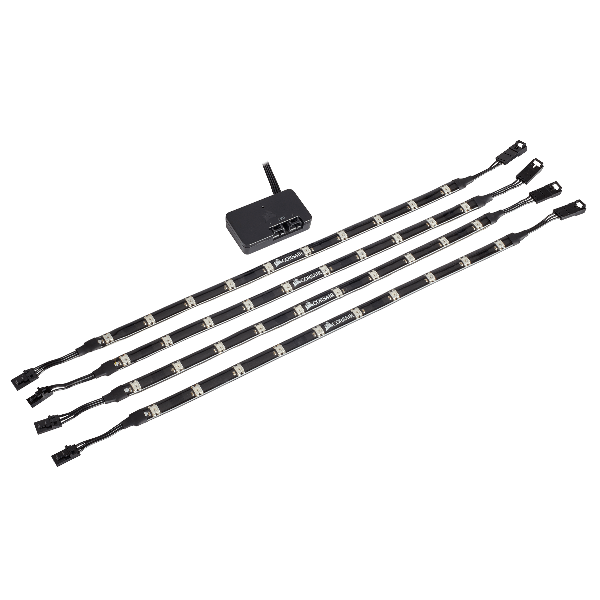

Package contents

• 1x Lighting Node PRO

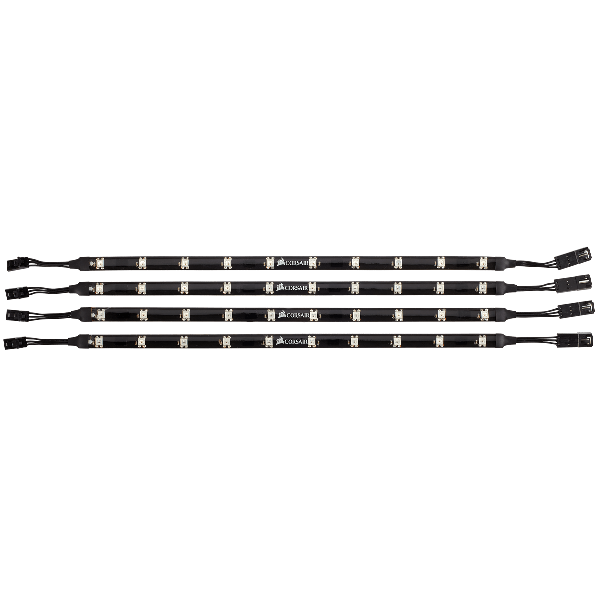

• 4x Individually addressable RGB LED strips

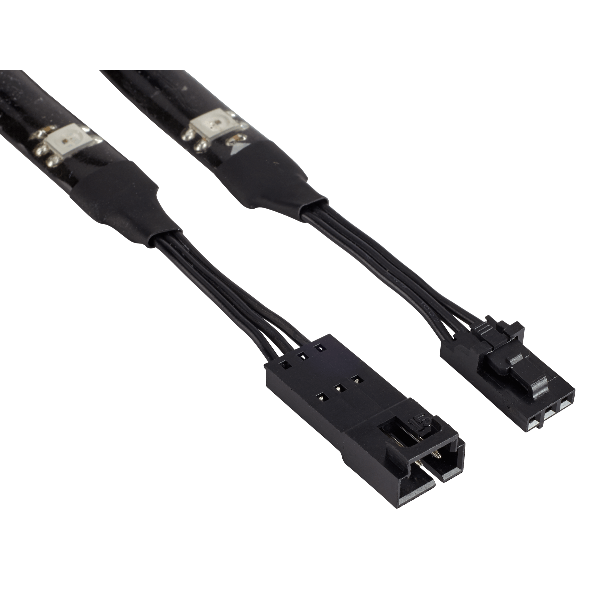

• 4x RGB LED extension cables

• 2x HD RGB LED fan hub adapter cable

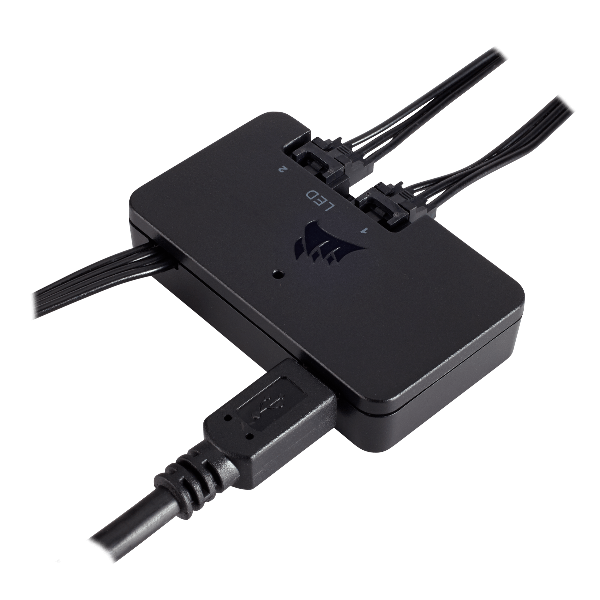

• 1x Mini USB cable

• 2x Mounting tape


• Windows 10, Windows 8, Windows 7

• Requires a motherboard with an internal USB 2.0 header

• Requires CORSAIR LINK software version 4.6 or higher

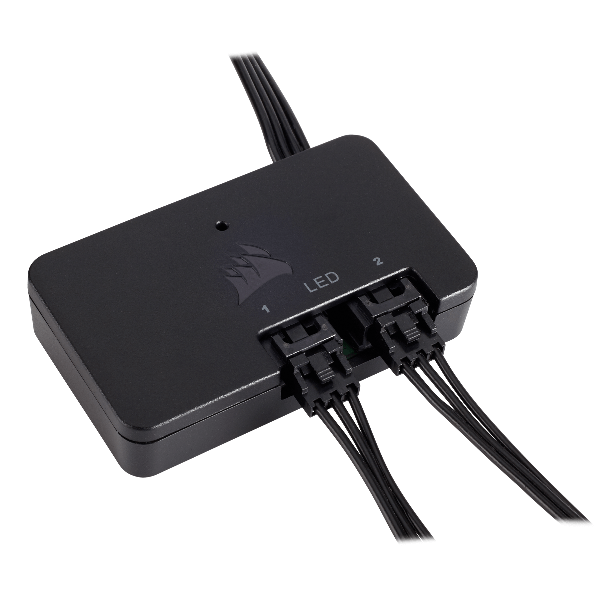

Lighting Node PRO specifications

• Power input: 4.5V to 5.5V

• Unit dimension: 55mm x 31mm x 12mm

• RGB LED channels: 2

• RGB LED strip per channel: max. 4

• Mini USB cable: 375mm

• SATA Power cable: 440mm

• HD RGB LED hub cable 485mm


• Length: 410mm

• RGB LED chip count: 10

• Protective cover: IP65-rated transparent silicone

• Adhesion type: 4 magnets per strip and full-strip tape

• RGB extension cable: 345mm
