Model: 90-MXBMJ0-A0UAYZ

SKU Code: 0033027

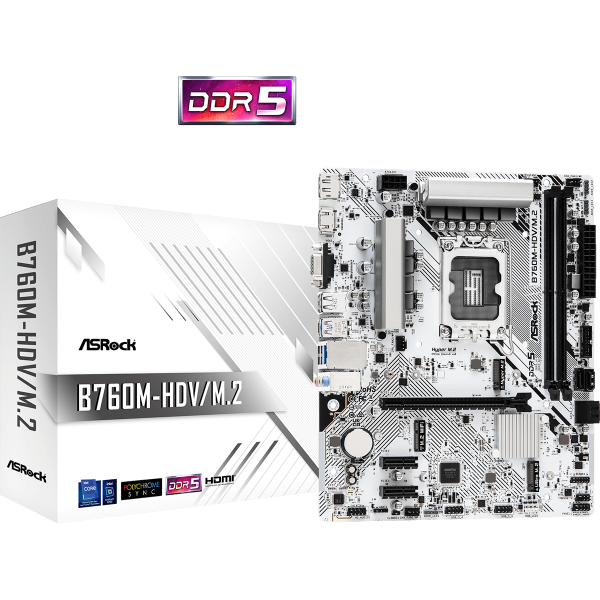

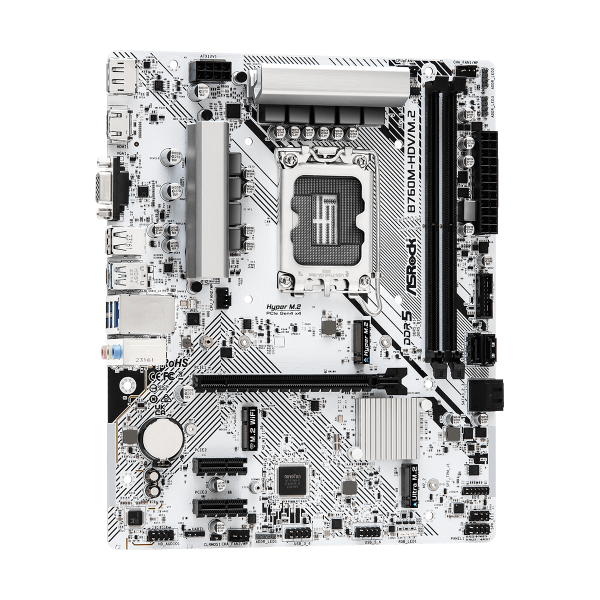

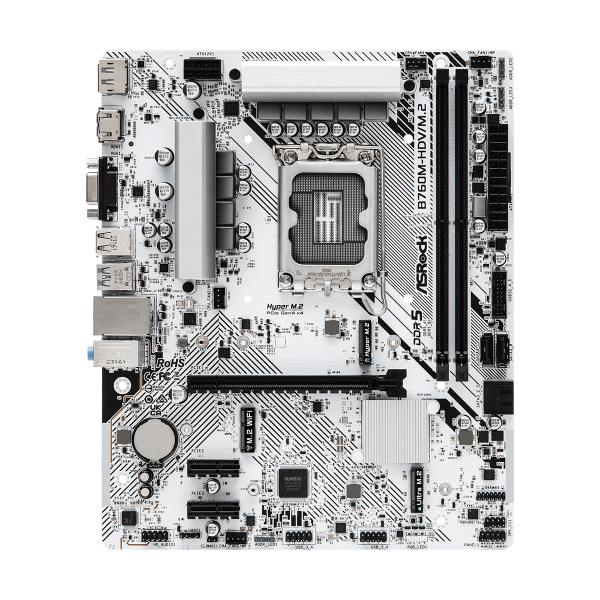

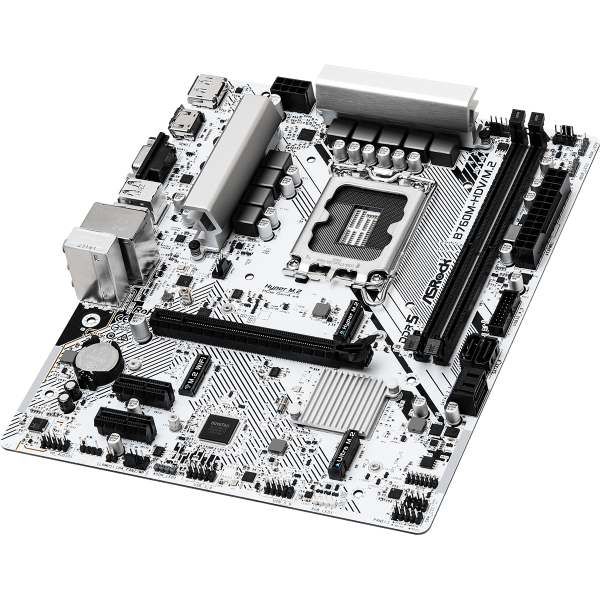

ASRock B760M HDV/M.2 LGA 1700 MicroATX Motherboard

Giving you your daily dose of entertainment all into a tiny, stylish and elegant motherboard!

Quantity



€125.00

In stock

Stock in Birkirkara

Description

7+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Features
  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • 7+1+1 Power Phase
  • 2 x DDR5 DIMMs
  • Supports Dual Channel, up to 7200+ (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
  • 1 Ultra M.2 (PCIe Gen3x4)
  • 1 USB 3.2 Gen1 Type-C (Rear),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
  • 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer

Specifications

CPU

Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)

Supports Intel® Hybrid Technology

Supports Intel® Turbo Boost Max 3.0 Technology

Supports Intel® Thermal Velocity Boost (TVB)

Supports Intel® Adaptive Boost Technology (ABT)

Chipset

Intel® B760

Memory

Dual Channel DDR5 Memory Technology

2 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

Max. capacity of system memory: 128GB

Supports Intel® Extreme Memory Profile (XMP) 3.0

1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.

1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.

Onboard Graphics

Intel® Xe Graphics Architecture (Gen 12)

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Expansion Slots

CPU:

  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

  • 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* Supports NVMe SSD as boot disks

Storage Interface

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes**

4 x SATA3 6.0 Gb/s Connectors

* Supports Intel® Volume Management Device (VMD)

** Supports NVMe SSD as boot disks

USB Chipset:

1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header

1 x RGB LED Header*

3 x Addressable LED Headers

1 x CPU Fan Connector (4-pin)

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

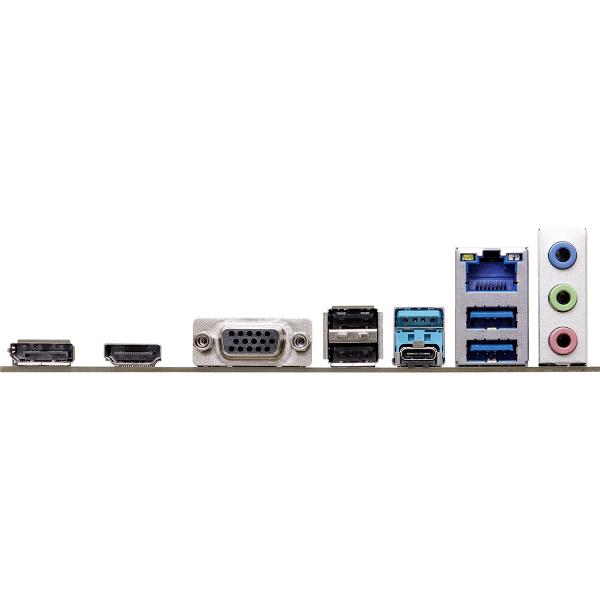

Back Panel Connectors

2 x Antenna Mounting Points

1 x D-Sub Port

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen1 Type-C Port

3 x USB 3.2 Gen1 Type-A Ports

2 x USB 2.0 Ports

1 x RJ-45 LAN Port

HD Audio Jacks: Line in / Front Speaker / Microphone

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Unique Features



Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC
UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
  • ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.

OS
Microsoft Windows® 10 64-bit / 11 64-bit

Form Factor
Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
