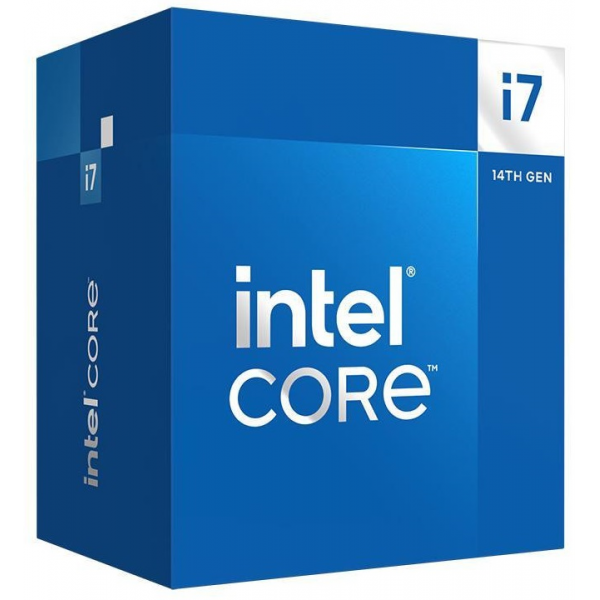

uilt with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency with a total of 20 cores while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i7-14700 powers demanding applications and games with eight 2.1 GHz Performance-cores, while the 12 low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time. With 33MB of cache and a 5.4 GHz Turbo Boost Max 3.0 frequency, this processor is made to handle intense workloads. The Core i7-14700 also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz. The Core i7-14700 features integrated Intel UHD 770 Graphics. A Laminar RM1 cooler is included.

Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor's Efficient-cores.



The Intel Thread Director is built into the CPU's cores, working with the operating system to ensure each of the 20 threads are assigned to the right core at the right time.



This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.





Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.



Accelerates AI inference to improve performance for deep learning workloads.

Memory Types

• Up to DDR5-5600
• Up to DDR4-3200

Max# of Memory Channels: 2



Intel® Gaussian & Neural Accelerator: 3.0

Intel® Thread Director: Yes

Intel® Deep Learning Boost (Intel® DL Boost): Yes

Intel® Optane™ Memory Supported: Yes

Intel® Speed Shift Technology: Yes

Intel® Turbo Boost Technology: 2.0

Intel® Hyper-Threading Technology: Yes

Intel® 64: Yes

Instruction Set: 64-bit

Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States: Yes

Enhanced Intel SpeedStep® Technology: Yes

Thermal Monitoring Technologies: Yes

Intel® Volume Management Device (VMD): Yes

Processor Graphics ‡: Intel® UHD Graphics 770

Graphics Base Frequency: 300 MHz

Graphics Max Dynamic Frequency: 1.6 GHz

Execution Units: 32

4K Support: Yes, at 60Hz

Max Resolution (HDMI): 4096 x 2160 @60Hz

Max Resolution (DP): 7680 x 4320 @60Hz

Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @120Hz

DirectX* Support: 12

OpenGL* Support: 4.5

Multi-Format Codec Engine: 2

Intel® Clear Video HD Technology: Yes

Intel® Clear Video Technology: Yes

# of Displays Supported: 4

Device ID: 0xA780
