Model: ARCHER TX20E

SKU Code: 0035331

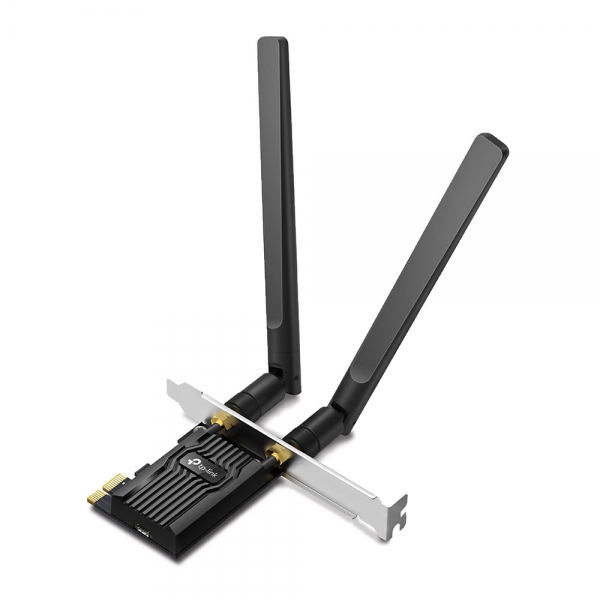

TP-Link Archer TX20E AX1800 Wi-Fi Bluetooth 5.2 PCI Adapter

Easily Get Start with Wi-Fi 6

Quantity



€29.90

In stock

Stock in Birkirkara & Zejtun

Description

Wi-Fi 6 Upgrades Everything
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.

More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

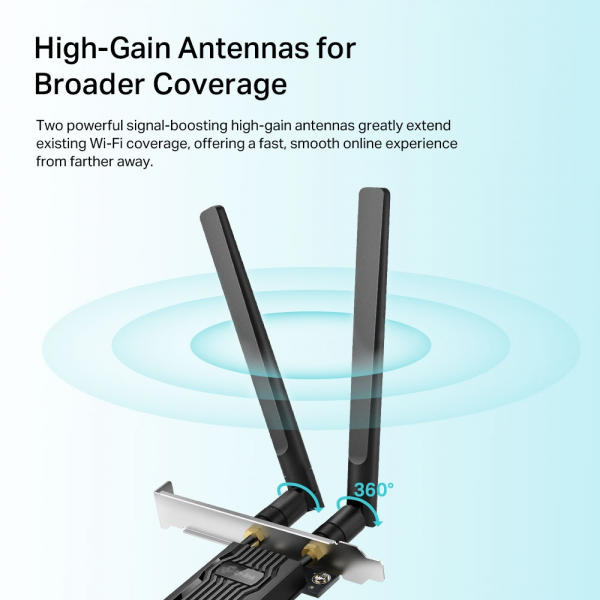

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.

Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.

Specifications

Hardware Features
Dimensions: 120.8 × 78.5 × 20.9 mm
Antenna Type: Two High-Gain Dual Band Antennas
Chipset: Realtek Wi-Fi 6 Chipset

Wireless Features
Wireless Standards:
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/g/b 2.4 GHz
  • Bluetooth 5.2

WLAN Signal Rate:

5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)


WLAN Reception Sensitivity:

5 GHz
11ax HE80: -57.0dBm
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11ac VHT80: -59.5dBm
11ac VHT40: -62.5dBm
11ac VHT20: -67.5dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11a 54Mbps: -74.0dBm
11a 6Mbps: -94.5dBm

2.4GHz
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11g 54Mbps: -74.0dBm
11b 11Mbps: -88.0dBm

WLAN Transmit Power:
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes: Infrastructure mode
Wireless Security : Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

System Requirements
Windows 11/10(64-bit) only

Package Contents
Archer TX20E
Two High-Gain Dual Band Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD


Warranty and Returns Policy
