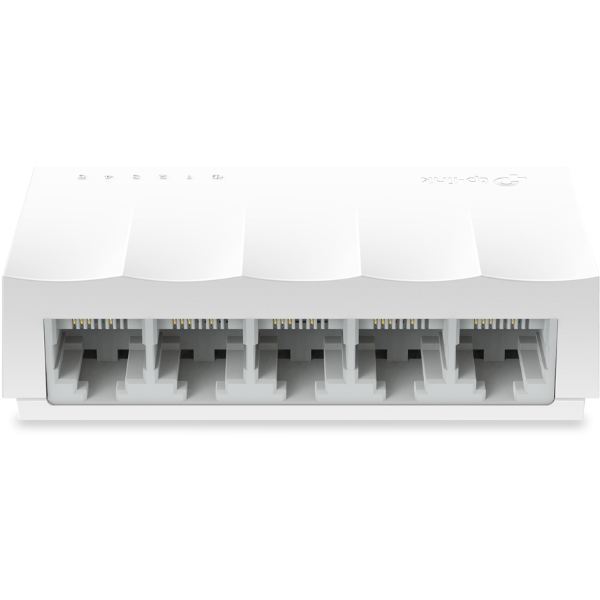

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

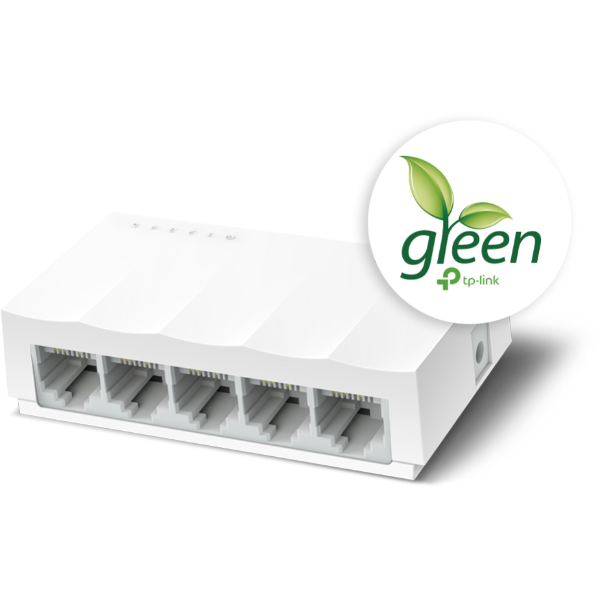

The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

The LS1005 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Standards and Protocols: IEEE 802.3i/802.3u/802.3x

Interface: 5× 10/100Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity: Fanless

External Power Supply: External Power Adapter (Output: 5VDC/0.6A)

Dimensions ( W x D x H ): 83.6 × 45.7 × 22.8 mm

Max Power Consumption: 1.65W

Max Heat Dissipation: 5.627 BTU/h

Software Features

Advanced Features:

Transfer Method: Store and Forward

Certification: CE, FCC, RoHS

Package Contents:

Environment: Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
