Klikk Computers Store Malta - TP-Link EAP225 AC1350 Wi-Fi Access Point

Model: EAP225

SKU Code: 0034956

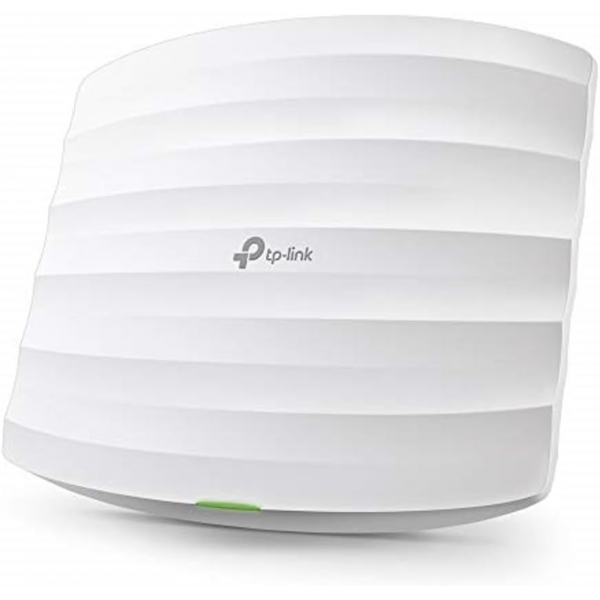

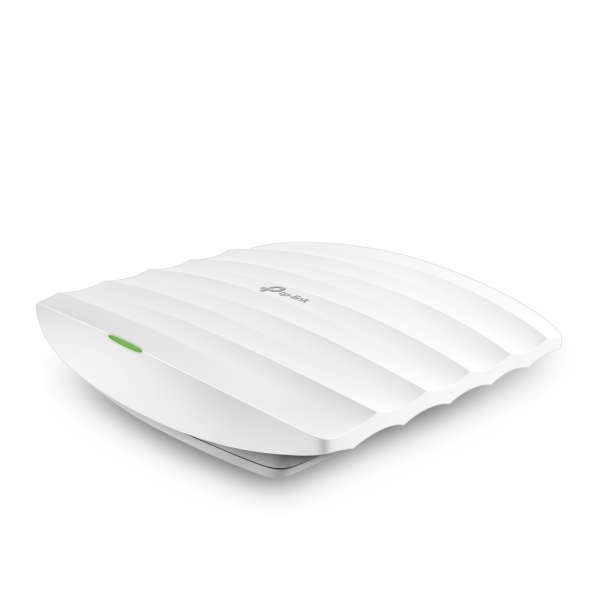

TP-Link EAP225 AC1350 Wi-Fi Access Point

An Affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution

Quantity

€99.90

In stock

Stock in Birkirkara & Zejtun

Description

Superior Wi-Fi Speeds with MU-MIMO Technology

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.†

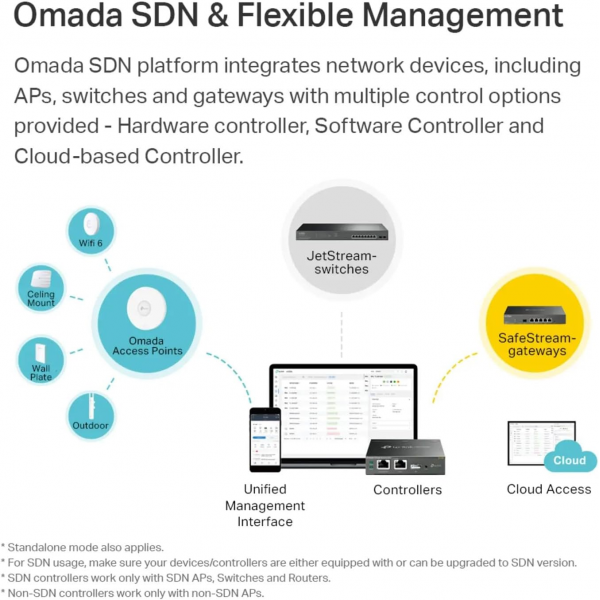

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

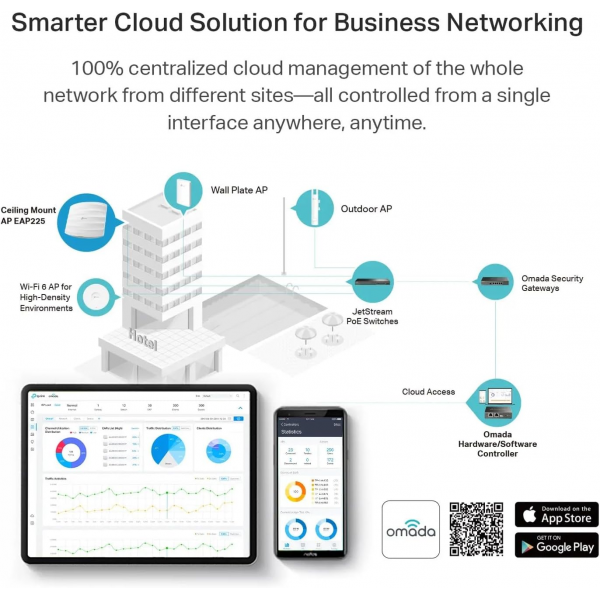

Hassle-Free Centralized Cloud Management

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Secure Guest Network with Facebook Wi-Fi and SMS Authentication

The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation

EAP225 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Specifications

Hardware Features

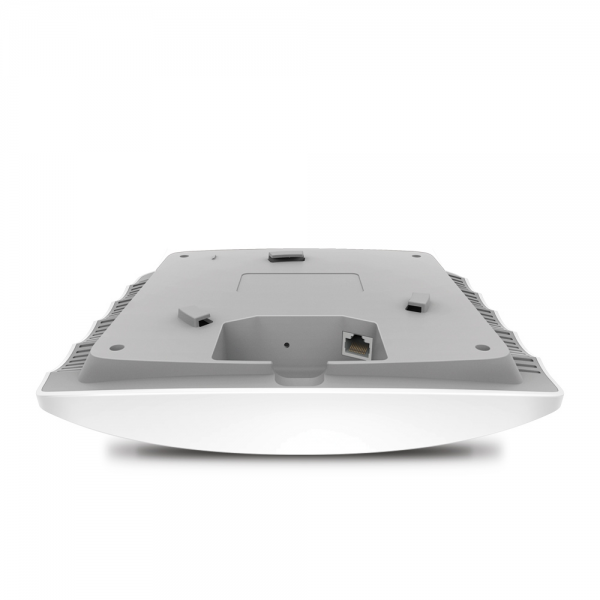

Interface: 1 x Gigabit Ethernet (RJ-45) Port(Support IEEE802.3af PoE and Passive PoE)

Button: Reset

Power Supply

802.3af/at PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Power Consumption: 10.5 W

Dimensions ( W x D x H ): 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Antenna: 3 Internal Omni

2.4 GHz: 4 dBi
5 GHz: 5 dBi

Mounting: Ceiling /Wall Mounting (Kits included)

Wireless Features

Wireless Standards: IEEE 802.11ac/n/g/b/a

Frequency: 2.4GHz, 5GHz

Signal Rate

5 GHz: Up to 867 Mbps
2.4 GHz: Up to 450 Mbps

Wireless Functions

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)

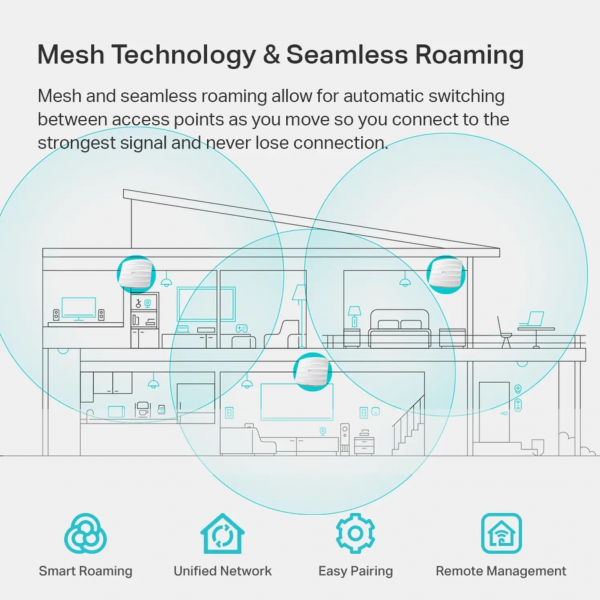

Seamless Roaming*
Omada Mesh*
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Transmission Power

CE: <20 dBm (2.4 GHz, EIRP), <23 dBm(5 GHz, EIRP)
FCC: <24 dBm (2.4 GHz), <22 dBm(5 GHz)

Management

Omada App: Yes

Centralized Management

Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c

System Logging Local/Remote Syslog: Yes

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

Others

Certification CE, FCC, RoHS

Package Contents

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
