Klikk Computers Store Malta - Cudy GS108D 8-port Gigabit Network Switch

Model: GS108D

SKU Code: 0036439

Cudy GS108D 8-port Gigabit Network Switch

A 8-GbE long-distance switch with modern design.

Quantity

€17.90

In stock

In Stock - Birkirkara & Zejtun

Description

Super-Fast Gigabit

Eight 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.

Extra Transmission Distance

170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power

Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

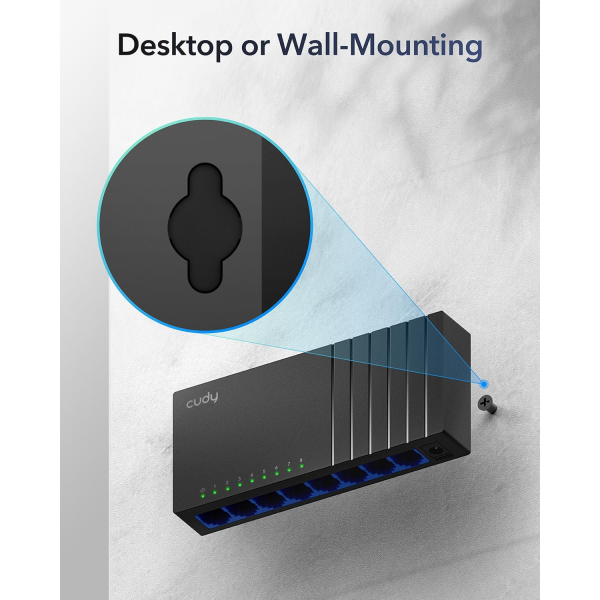

Wall Mounting

Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

Features

8× Gigabit Ethernet Ports
Max 170m Gigabit Transmission
4 Mbit Packet Buffer
Max 2.75W, Idle 2.2W
Desktop, Wall-Mount

Specifications

Technical Specifications

Gigabit RJ45 Ports: 8

LED:

Power
Speed/Link/ACT of Each Ethernet Port

Power Input: DC Jack

Performance

Copper Speed and Distance:

Cat. 3 or higher cable: 100 meters at 10 Mbps
Cat. 5 or higher cable: 100 meters at 100 Mbps
Cat. 5e or higher cable: 170 meters at Gigabit

MAC Address Table: 8192

Max Switching Capacity: 16 Gbps

Max Forwarding Rate: 11.904 Mpps

Jumbo Frame: 15 KB

Packet Buffer: 4 Mbit

Power

Power Methods: DC

DC: 5V⎓0.55A

Power Adapter:

Input: 100-240V~, 50/60Hz
Output: 5V⎓0.55A

Max Power Consumption: 2.75W

Idle Power Consumption: 2.2W

Switching

802.3 Protocols:

802.3x Flow Control
802.3i 10BASE-T
802.3u 100BASE-TX
802.3ab 1000BASE-T

L2 Features:

IGMP Snooping
Loop Prevention

Dimensions and Weight

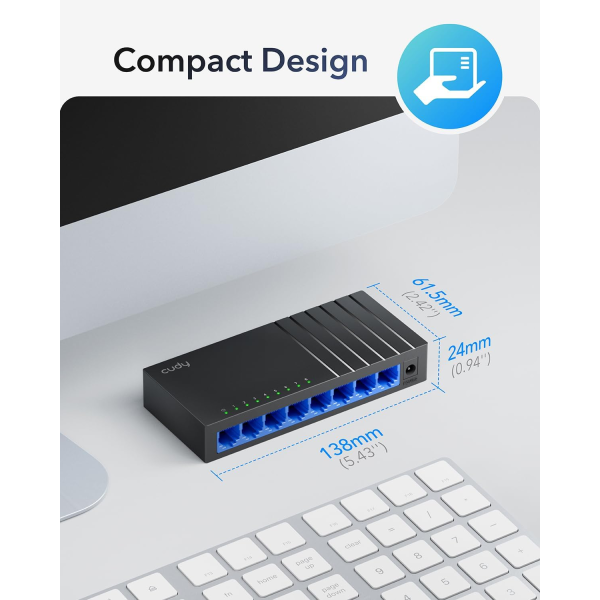

Dimensions: 138×61.5×24 mm

Weight: 89g
