Model: UPS-2U

SKU Code: 0040205

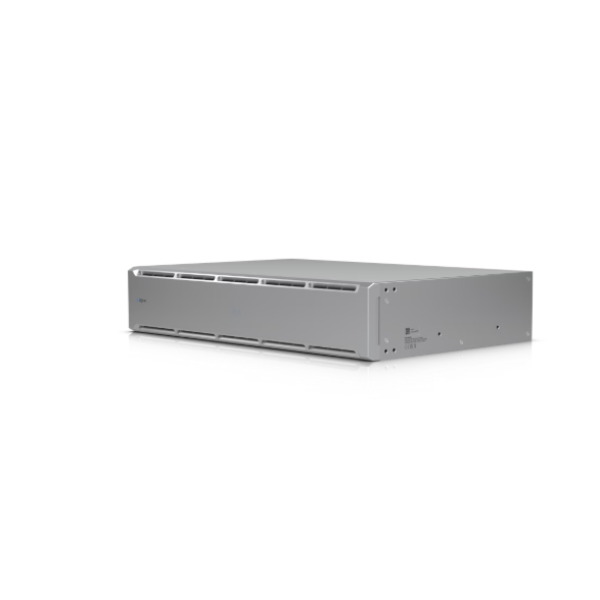

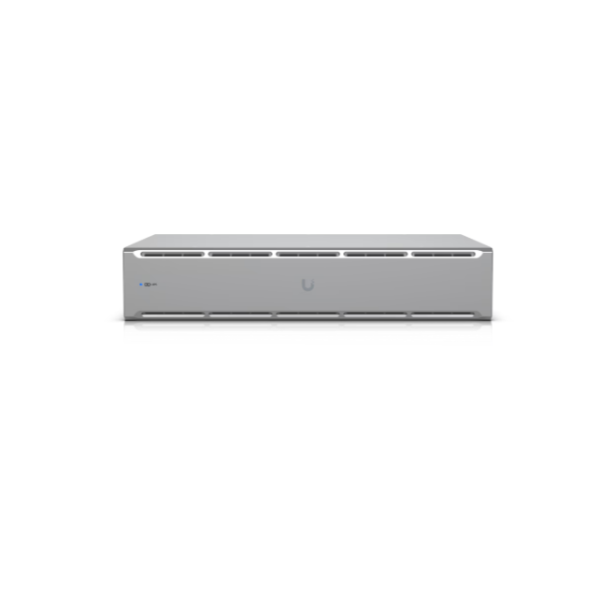

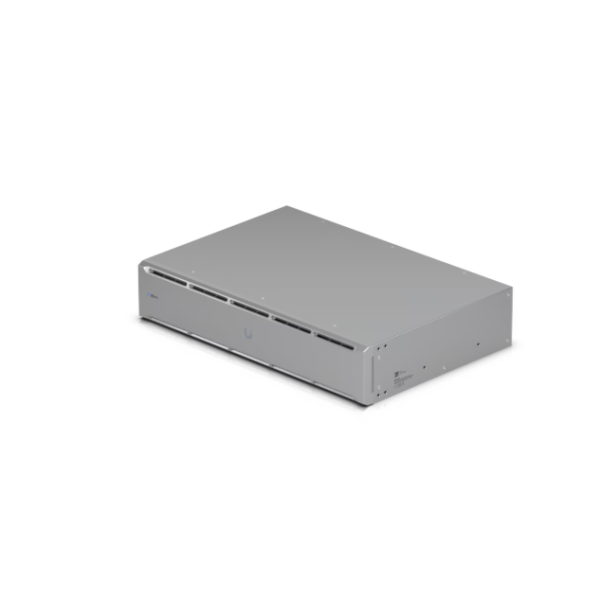

Ubiquiti Line Interactive 1500VA 2U UPS

Currently Not Available

€499.00

Offers available in Stores only

€449.10

Description

Overview
UniFi managed 1.5kVA rackmount uninterruptible power supply with 4 backup outlets, 4 surge outlets, and a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes. It supports Graceful Shutdown for UNVR and UNAS and includes NUT compatibility for third-party devices.

Specifications

Mechanical

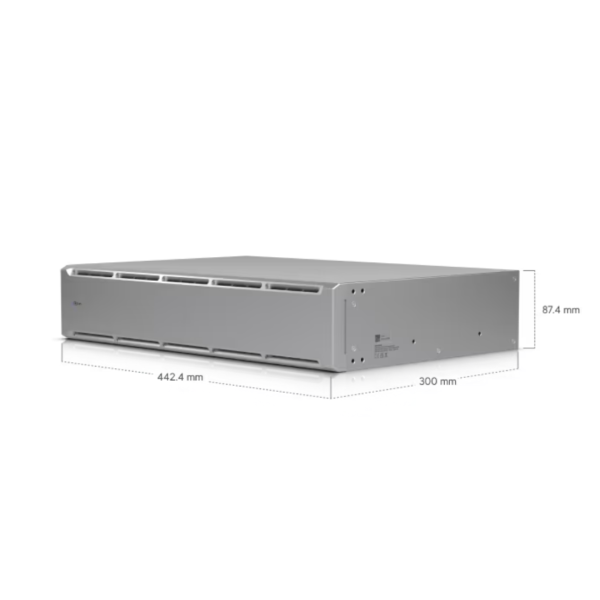

Dimensions: 442.4 x 300 x 87.4 mm
Weight: 13.7 kg
Enclosure Material: Galvanized steel
Form Factor: Rack mount (2U)
Weatherproofing: IP20

Hardware
Management
Ethernet
Networking Interface:
  • (1) 100/10 MbE port for network connection
  • (2) GbE ports for surge in/out

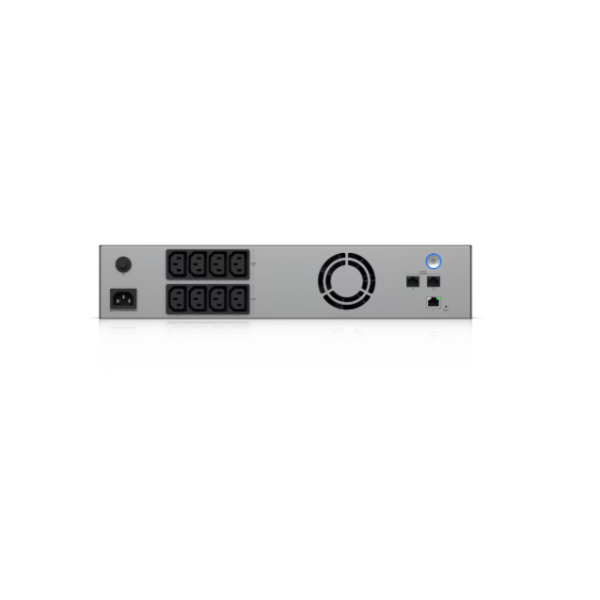

Power:
  • (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord
  • (4) Battery backup/surge protection: C13
  • (4) Surge protection: C13
Capacity: 1,500VA/1,000W
Type: Line interactive
Input Voltage Range: 170–280V AC
Power Method: (1) TN system, 220–240V AC, 10A Max., 50/60 Hz
Nominal Input Voltage: 230V AC
Output Voltage: 220–240V AC
Nominal Output Voltage: 230V AC
Frequency Range: AC mode: 50/60 Hz ±5 Hz (Auto sensing)
Battery mode: 50 Hz ±1 Hz
AC Voltage Regulation: ±10% (Battery mode)
Transfer Time: 6 ms typical; 10 ms max. (Battery mode)
Wave Form: Simulated sine wave (Battery mode)
Battery Type: (2) Lead Acid 12V, 9Ah
Runtime:
  • Full load: 2.3 min
  • Half load: 8 min
Battery Charging Time: 6-8 hours recovery to 90% capacity
Overload at On-Line Mode:
  • 110% 5 min go to fault
  • 120% go to fault immediately
Overload at Battery Mode:
  • 110% shutdown in 5 sec
  • 120% shutdown immediately
Short Circuit Protection at On-Line Mode: Breaker, 250V AC, 10A
Output Short-Circuit Current:
  • Ipeak 444.0A
  • Irms 223.1A
Buttons:
  • (1) Power
  • (1) Factory reset
LEDs:
  • Status:
    • Off: device not turned on
    • Flashing white: initializing / factory default
    • Steady white: waiting for adoption
    • Steady blue: device adoption and working
    • Flashing blue: battery mode
    • Alternating white/blue: firmware upgrading
    • Rapid flashing blue: locate
    • Steady red: warning
    • Flashing red: low battery
Operating Altitude: 3,000 m (1.9 mi)
Operating Environment: Pollution Degree 2
Ambient Storage Temperature: -20 to 50° C
Ambient Operating Temperature: 0 to 40° C
Ambient Operating Humidity: 0 to 95% noncondensing
Certifications: CE, IEC 62040-1
