Model: UDB-Pro

SKU Code: 0039816

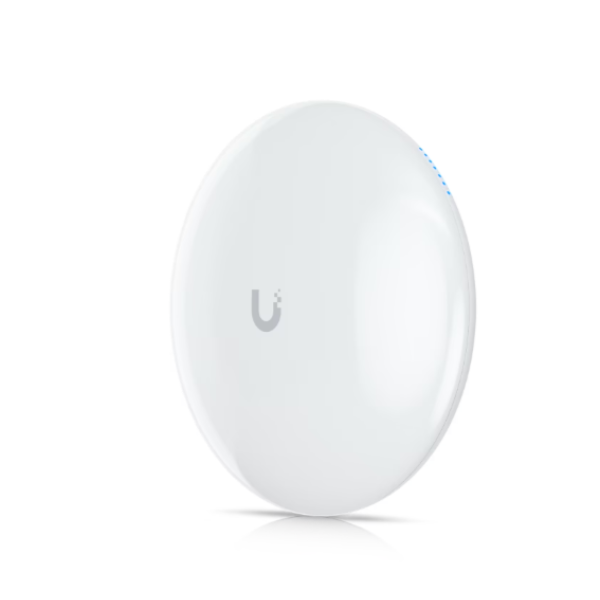

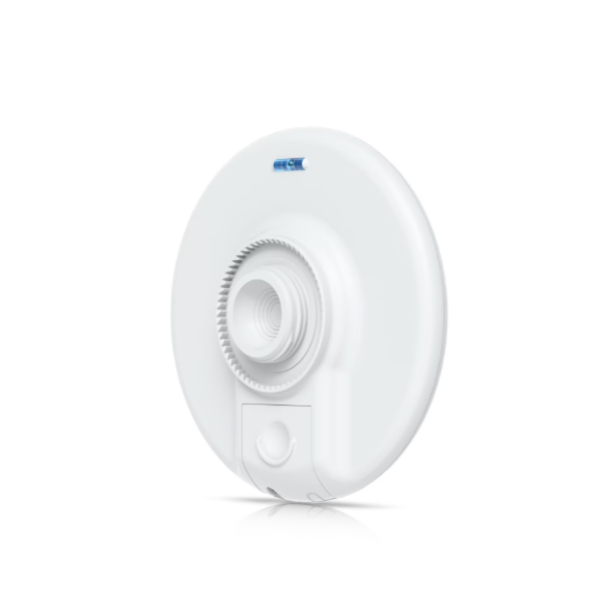

Ubiquiti Wireless Device Bridge Pro

In stock

In Stock - Currently online only

Quantity



€250.00

€279.00

Offers available in Stores only

€225.00

€8.29 per month for 36 months with selected GO plans. €0.00 upfront, 0% interest & 3-year warranty. *

Description

Overview
5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

Specifications

Overview
Dimensions: ⌀189.5 x 64.3 mm
WiFi Standard: WiFi 5
Spatial Streams: 2
Coverage Area: 5 km (3.1 mi)
Mounting Locations: Wall, pole

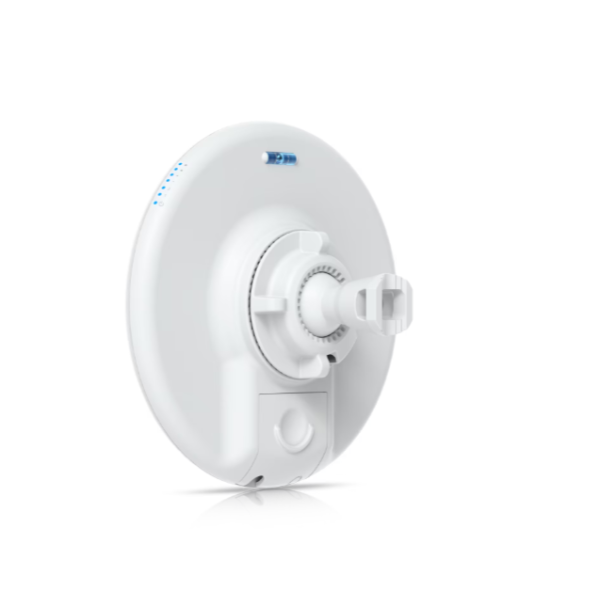

Mounting: Pole (Included)
Weatherproofing: IPX6
Power Method
  • PoE
  • PoE+ (Required for PoE output)
Power Supply: 48V, 0.32A PoE adapter (Included)


Performance
MIMO
  • 5 GHz
    • 2 x 2
Max. Data Rate
  • 5 GHz
    • 867 Mbps (BW80)
Antenna Gain
  • 5 GHz
    • 19 dBi
Max. TX Power
  • 5 GHz
    • 25 dBm
Max. Conducted TX Power: 25 dBm (Combined)
Supported Data Rates
  • 802.11ac (WiFi 5)
    • 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
  • 802.11n
    • 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
  • 802.11a
    • 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security: WPA2 AES

Hardware
Max. Power Consumption: 9W
Supported Voltage Range: 42.5–57V DC

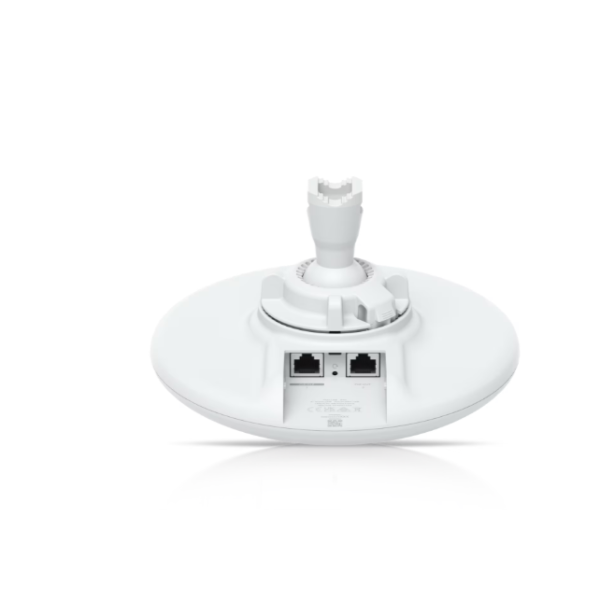

Networking Interface: (2) GbE RJ45 ports
Antennas: Internal
Management
  • (1) PoE in (PoE output not used)
  • (1) Passive PoE output
Channel Bandwidth: 20/40/80 (MHz)
Wind Loading: 69 N at 200 km/h (15.5 lbf at 125 mph)
Weight
  • Device: 431 g
  • With mount: 515 g
Enclosure Material: UV-resistant polycarbonate
Mount Material: UV-stabilized polycarbonate, stainless steel
Pole Mount Diameter: 0.8–2.1" (20–53.1 mm)
Button: (1) Factory reset

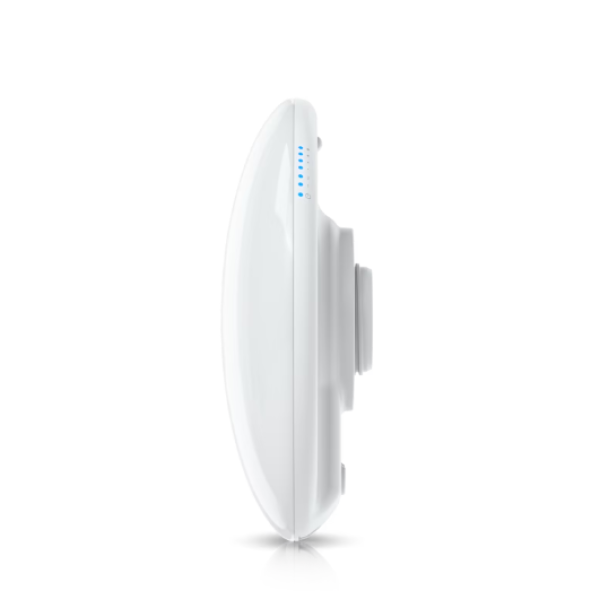

LEDs
  • System: Power, (2) Ethernet status - main port/PoE out port, (4) signal strength
NDAA Compliant: ✓
Certifications: CE, FCC, IC
Operating Frequency
  • US/CA:
    • U-NII-1 5150 - 5250 MHz
    • U-NII-2A 5250 - 5350 MHz
    • U-NII-2C 5470 - 5725 MHz
    • U-NII-3 5725 - 5850 MHz
  • Worldwide:
    • 5150 - 5875 MHz
Ambient Operating Temperature: -40 to 60° C
Ambient Operating Humidity: 5 to 95% noncondensing

GO Easy Buy

To enjoy these deals, simply subscribe to one of GO's Freedom Plans or Home Packs.

If you’re new to GO and would like to take advantage of the Easy Buy option, you must have a valid Maltese ID card or local ID residency card, have an account with a local bank, provide copies of your last 3 full-time payslips (1 per month) or last 6 months postpaid bills with Epic/Melita, paid in full and on time.

To confirm your eligibility, please visit one of our stores.
For any questions regarding your eligibility or the required documents, you may also contact us via email.
Please note that email responses are for informational purposes only and do not constitute a guarantee of eligibility.
Final approval and pricing are subject to verification during your in-store visit.

Easy Buy Terms & Conditions

Warranty and Returns Policy
