Model: UCG-Ultra

SKU Code: 0037041

Ubiquiti UniFi Cloud Gateway Ultra

Currently Not Available

€125.00

Offers available in Stores only

€112.50

Description

Overview
Compact Cloud Gateway with 30+ UniFi device / 300+ client support, 1 Gbps IPS routing, and multi-WAN load balancing.

Specifications

Overview

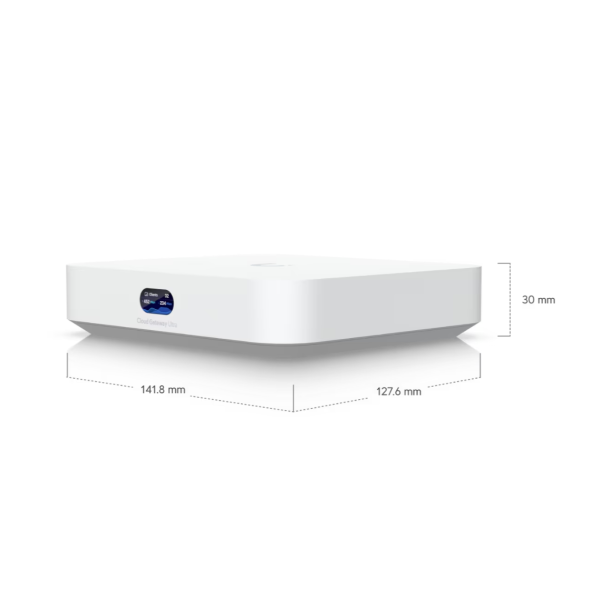

Dimensions: 141.8 x 127.6 x 30 mm
UniFi Application Suite
  • Network: ✓
Managed UniFi Devices: 30+
Simultaneous Users Connected: 300+
Max. WAN Port Count: 4
Default WAN Ports: (1) 2.5 GbE RJ45

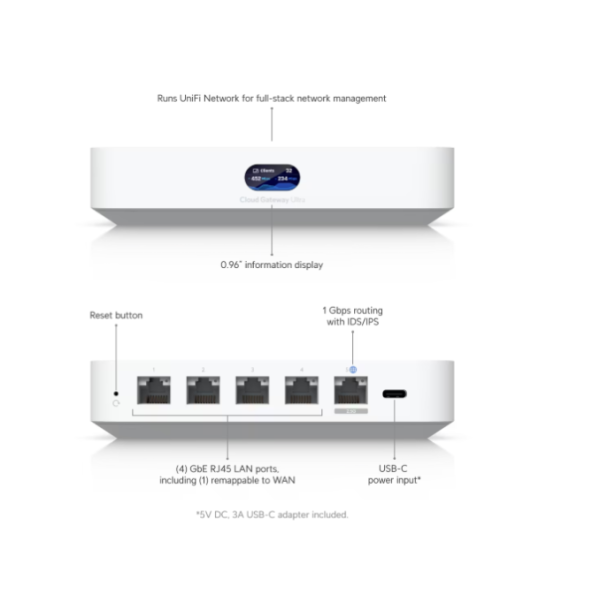

Port Layout
  • 1 GbE RJ45
    • 4
    •  (1G/100M/10M)
  • 2.5 GbE RJ45
    • 1
    • (2.5G/1G/100M/10M)
  • IDS/IPS Throughput
    • 1 Gbps
Form Factor: Compact desktop

Hardware
Max. Power Consumption: 6.2W
Power Method: USB type C (5V DC/3A)
Power Supply: USB type C (5V DC/3A) (Adapter included)
Supported Voltage Range: 100–240V AC
Heat Dissipation: 21 BTU/hr
Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory: 3 GB
On-board Storage: 16 GB
Weight: 520 g
Enclosure Material: Polycarbonate
LCM Display: 0.96" status display
Management
  • Ethernet
  • Bluetooth
LEDs
  • Ethernet: ✓
Button: (1) Factory reset
Ambient Operating Temperature: -10 to 40° C
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel: 04653-24-08356, SRRC

Software
Application Requirements
  • Mobile App
    • UniFi iOS™: Version 10.12.0 and later
    • UniFi Android™: Version 10.11.2 and later

Warranty and Returns Policy
