SKU Code: 0028709

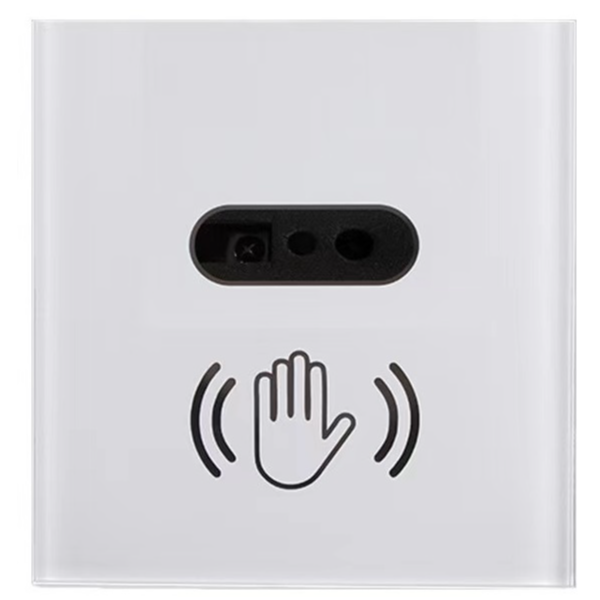

Generic Touch less Infrared 1-Gang Wall Switch White

Infrared Sensor Switch.

Quantity



€27.00

In stock

Stock in Birkirkara

Description

Note: This switch is not Smart and doesn't connect wirelessly to an App. Touchless function is achieved with a built-in infrared sensor.

Overview
This infrared sensor switch is applied to replace traditional or old switch panels. It can be directly installed at the place where the original switch lay. You can control the light without touch the switch. When your hand close to the switch in the range of 12cm, the light can turn on immediately.

Specifications

Technical Specifications
Voltage: AC100-240 50/60Hz
Power Consumption: <0.05w
Rater Power: 800w
Relay Output: 10A
Connection: L and N lines

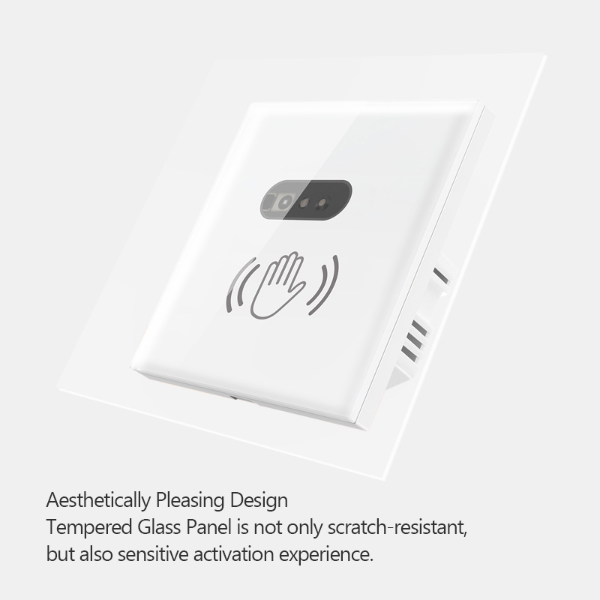

Material: PC + Tempered Glass
Mount Hole Distance: 60 mm
Indicator Light: Red for OFF, Blue for ON
Screw Diameter: 4 mm
Installation Depth: 26 mm
Dimension: 86 x 86 x 35 cm
Weight: 121g

Notes
  • When wiring lines, please make sure the connections of L and N are completely right.
  • After installation, the protective film can be taken off.

Installation
  1. Disassemble the original switch from the wall.
  2. For the infrared sensor switch, you need to take off the control part from the switch panel by a small tool.
  3. Loose the four screws and wire the switch with the live line and naught line.
  4. Tighten the screws and fix the switch on the wall with screws in the package.
  5. Cover the panel on this switch.

Warranty and Returns Policy
