Model: USW-PRO-MAX-24-POE

SKU Code: 0039709

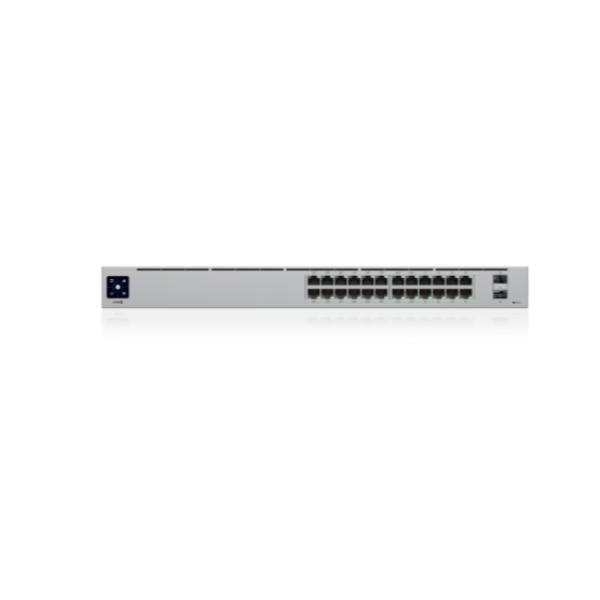

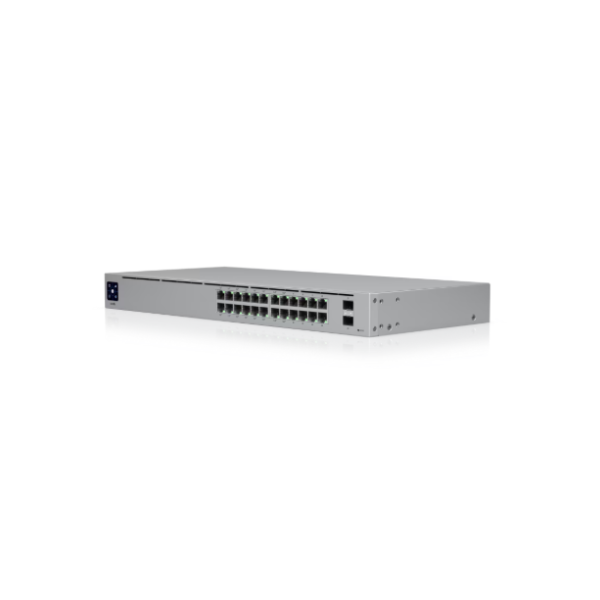

Ubiquiti UniFi Pro 24+2-port PoE Switch 400W

In stock

Limited Stock Available

Quantity



€879.00

Offers available in Stores only

€791.10

€26.13 per month for 36 months with selected GO plans. €0.00 upfront, 0% interest & 3-year warranty. *

Description

Overview
A 24-port, Layer 2 PoE switch with a fanless cooling system.

Specifications

Overview
Dimensions: 442 x 200 x 44 mm
Port Layout
  • 1 GbE RJ45
    • 24 (16 PoE+)
    • (1G/100M/10M)
  • 1G SFP
    • 2
    • (1G)
Max. PoE Output: Up to PoE+
Total PoE Availability: 95W
Form Factor: Rack mount (1U)

Performance
Switching Capacity: 52 Gbps
Total Non-Blocking Throughput: 26 Gbps
Forwarding Rate: 39 Mpps
Supported VLANs: 1,000
MAC Address Table Size: 8,000
Packet Buffer Size: 0.5 MB
Access Lists
  • IPv4: 128
  • MAC: 128

Layer 2 Features
LACP Port Aggregation: ✓
STP & RSTP: ✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓
IGMP Snooping: ✓
802.1X Control: ✓
MAC-Based ACLs & Device Isolation: ✓
DHCP Snooping & Guarding: ✓
Egress Rate Limit: ✓
Flow Control: ✓
Storm Control: ✓
Multicast & Broadcast Rate Limiting: ✓
MAC Address Blocking: ✓
IP-Based ACLs & Network Isolation: ✓
MAC-Based Port Restriction: ✓
Port Isolation: ✓
Port Mirroring: ✓
Jumbo Frames: ✓
LLDP-MED: ✓
Voice VLAN: ✓
Loop Protection: ✓
Virtual Network Override: ✓

Hardware
PoE Ports
  • PoE+: 16
Max. PoE Wattage per Port by PSE
  • PoE: 15.4W
  • PoE+: 32W
Max. Power Consumption
  • 25W (Excluding PoE output)
  • 120W (Including PoE Output)
Power Method: Universal input, 100–240V AC, 50/60 Hz
Power Input Method: AC input
Power Supply: AC/DC, internal, 120W
Supported Voltage Range: 100–240V AC
Management
  • Ethernet
  • AR
Heat Dissipation: 85.3 BTU/hr (Excluding PoE Output)
Weight
  • Without mounting brackets: 3 kg
  • With mounting brackets: 3.1 kg
Enclosure Material: SGCC steel
Mount Material: SGCC steel
Supported Rack Depth: 400~1200 mm
LCM Display: 1.3" touchscreen
ESD Protection: Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature: -5 to 40° C
Ambient Operating Humidity: 10 to 90% noncondensing
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel: 00593-21-08356

Software
Application Requirements
  • UniFi Network
    • Version 7.2.94 and later
