Model: 7D76-001R

SKU Code: 0035344

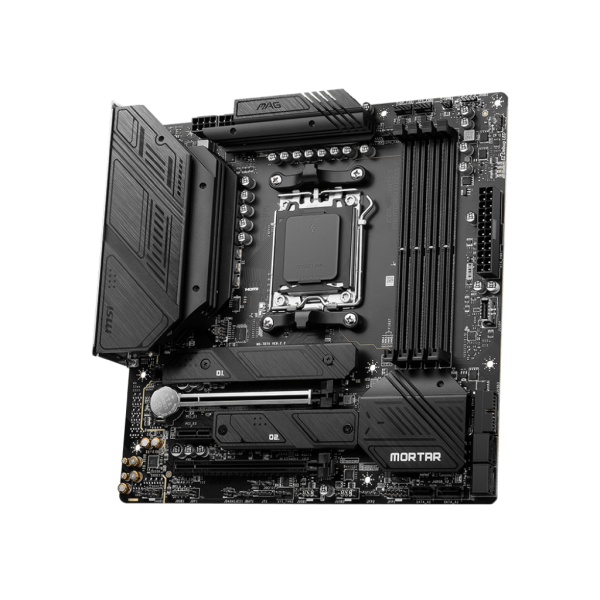

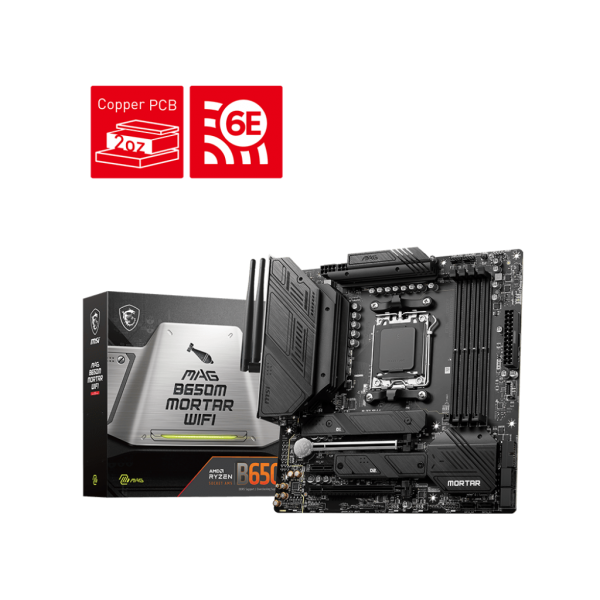

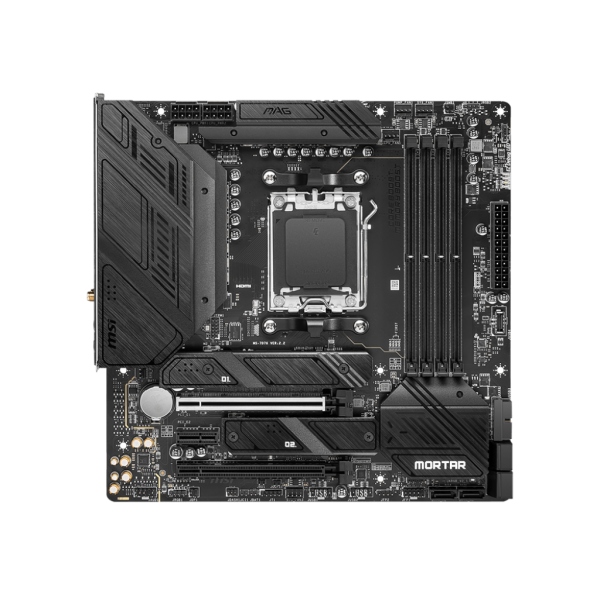

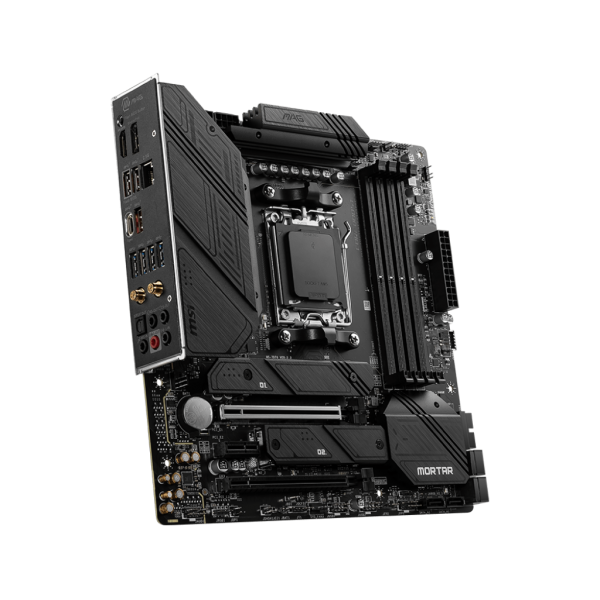

MSI MAG B650M Mortar WIFI AM5 DDR5 Micro ATX Motherboard

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

Quantity



€249.00

In stock

Limited Stock Available

Description

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

Optimized for water cooling
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

12+2+1 Duet rail power system
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

Lightning GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

MSI Steel Armor
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Audio Boost 5
  • High Performance ALC4080 Audio Processor
  • High Quality audio jacks with S/PDIF
  • High Quality audio capacitors
  • Isolated audio signal
  • DE-POP protection

Extend your RGB experience with ease
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

High-bandwidth and low-latency network
MSI's premium network solution provides incredible data transfer speed for demanding users.

Specifications

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Chipset

AMD B650

Memory

4x DDR5, Maximum Memory Capacity 256GB

Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 7600+ MHz
  • 1DPC 2R Max speed up to 6400+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz

Onboard Graphics

1x HDMI™ (Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*)

1x DisplayPort (Support DP 1.4, maximum resolution of 8K 60Hz*)

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Audio

Realtek® ALC4080 Codec

7.1-Channel High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

LAN

Realtek® RTL8125B 2.5Gbps LAN

Expansion Slots

2 x PCI-E x16 slot

  • Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)

1 x PCI-E x1 slot

  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
  • PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage Interface

2x M.2

  • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G

  • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

* SATA_A1_A2 do not support RAID function.

USB

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

3x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Front)

1x USB 20Gbps Type C (Rear)

Internal I/O Connectors

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

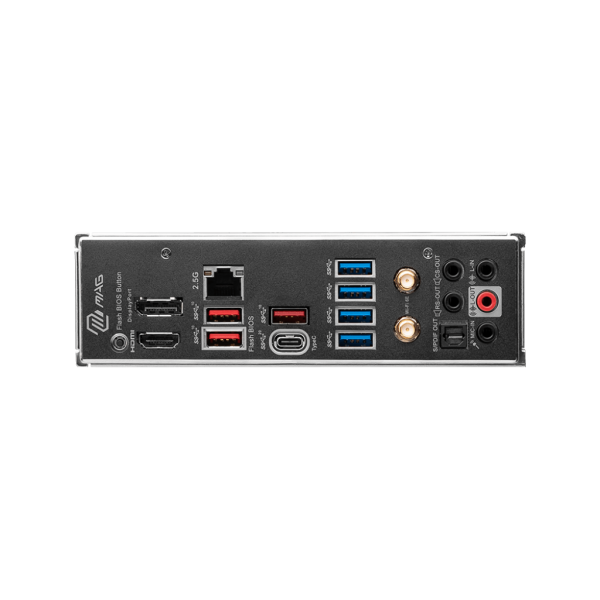

Back Panel Ports

DisplayPort 1.4

2.5G LAN Port

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

Wi-Fi / Bluetooth Antenna

HD Audio Connectors

Flash BIOS Button

HDMI™ 2.1 Port

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT



Form Factor

mATX
243.84mmx243.84mm
